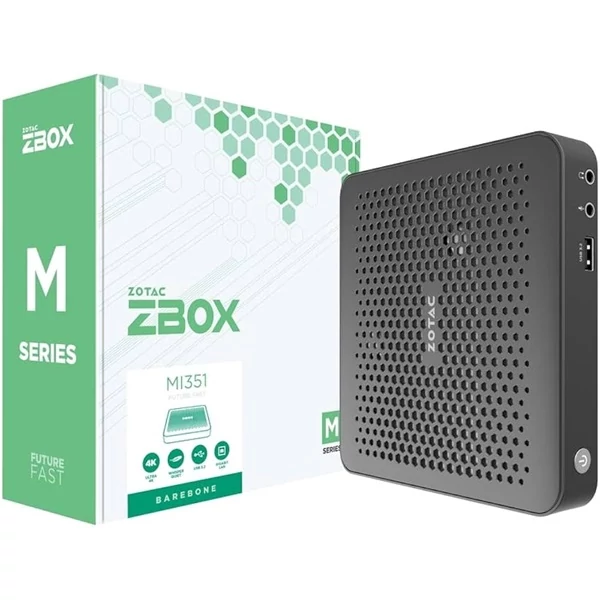

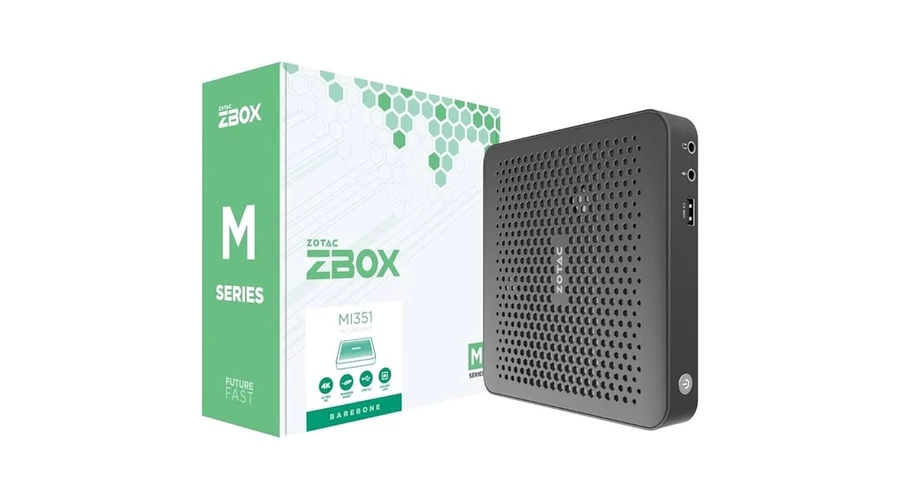

ZOTAC PC ZBOX, Intel N-series N100 3.4GHz, HDMI, Displayport, LAN, WIFI, BT, M.2 SSD hely, 4xUSB ZOTAC

•


  Processor





  Intel Processor N100 (quad-core 0.8GHz, up to 3.4GHz)





•


  Chipset





  Intel





•


  System Memory





  1 x DDR5-4800 SODIMM slot (up to 16GB)




 Graphics

•


  Graphics Engine





  Intel UHD Graphics (Integrated)





•


  Video Output





  HDMI 2.0 (up to 3840x2160@60Hz)

  DisplayPort 1.4 (up to 4096x2160@60Hz)




 Storage

•


  Hard Drive





  N/A





•


  Storage





  N/A





•


  Optical Drive





  N/A





•


  mSATA





  N/A





•


  M.2





  M.2 NVMe PCIe 3.0 x4 / SATA SSD (2242/2280) support





•


  Card Reader





  N/A




 I/O Ports

•


  Audio





  Analog Stereo out / Microphone, 8ch via HDMI





•


  USB Port





  1 x USB 3.2 (Front)

  3 x USB 3.2 (Rear)





•


  LAN





  1 x 10/100/1000 Mbps





•


  Antenna





  Yes





•


  Wifi





  WiFi 6





•


  Bluetooth





  Bluetooth 5.2





•


  Legacy I/O





  N/A





•


  CIR Infrared Port





  N/A





•


  Thunderbolt





  N/A





•


  IDE





  N/A




 Mechanical

•


  Kensington Lock





  Yes





•


  LED Indicators





  N/A





•


  Power Supply





  AC Adapter

  O/P: DC 19V/40W





•


  Cooling system





  Fan + Heatsink





•


  ZBOX Dimensions





  149.5mm x 149.5mm x 28.5mm (5.89in x 5.89in x 1.12in)





•


  Case Mounting





  VESA Mount ready




 Miscellaneous

•


  Supported OS





  Windows 11 ready





•


  Accessories





  Wi-Fi antenna

  2 x VESA mount bracket (with 4 screws)

  AC Adapter

  Power Cable (bundled cable type dependent on region)

  Warranty Card

  Quick Install Guide
