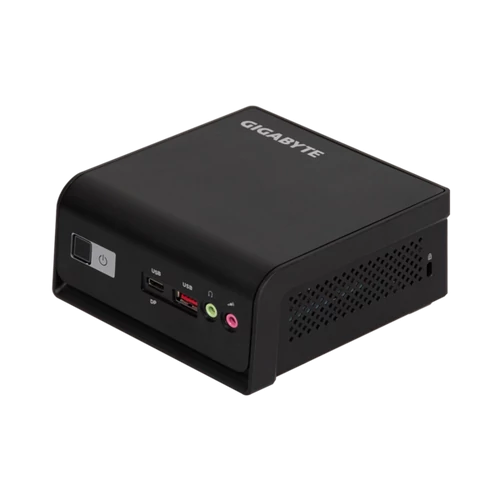

GIGABYTE PC BRIX, Intel N-series N250 3.8GHz, HDMI, 2xDisplayport, LAN, WIFI, BT, 2.5" HDD hely, 3xUSB Gigabyte

Dimension

113 mm x 116.52 mm x 56.22 mm

Motherboard Size

154 mm x 109 mm

CPU

Intel^® Processor N250

4C, up to 3.8 GHz, 6W

Memory

1 x SO-DIMM DDR5 slot, support up to 4800MHz

Max. 16GB

LAN

GbE LAN (Realtek^® RTL8111H)

Wifi Card

AW-CB515NF

Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0

Graphics

Intel^® Graphics 32EUs

1 x HDMI v2.0, 4096x2160@60Hz

1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz

1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz

Audio

Realtek® ALC897

Storage

1 x 2.5'' slot for SATA HDD/SSD

Expansion Slots

1 x M.2 M Key 2280 slot (PCIe Gen 3x2)

1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)

Front I/O

1 x Power button

1 x USB 3.2 Gen2 Type-A

1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB)

1 x Headphone

1 x Microphone

Rear I/O

1 x HDMI

1 x RJ45

2 x USB 3.2 Gen2 Type-A

1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB)

1 x Wire Clamp Screw Hole

Left I/O

1 x DC-In

Right I/O

1 x Kensington lock slot

Power Supply

Input: AC 100-240V

Output: DC 19V / 3.42A, 65W

VESA

VESA support

Supports 75 x 75 and 100 x 100 mm

Support OS

Windows 11 64bits

Environment

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C
