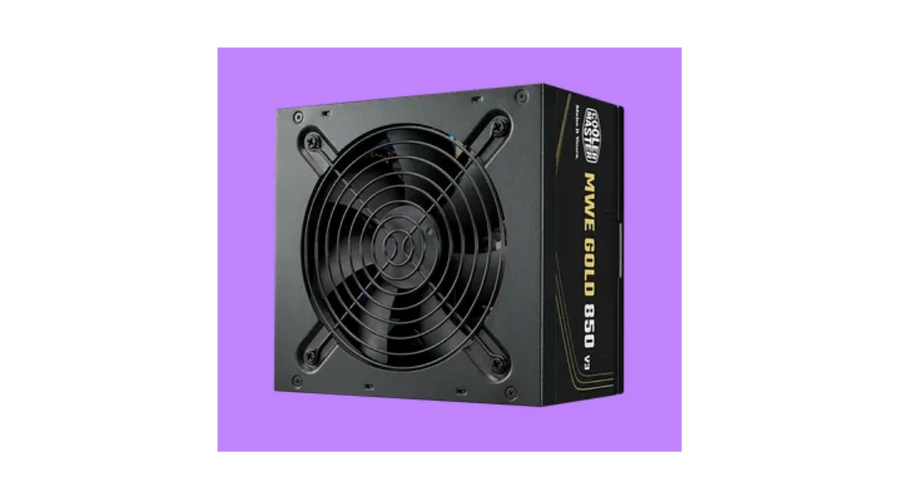

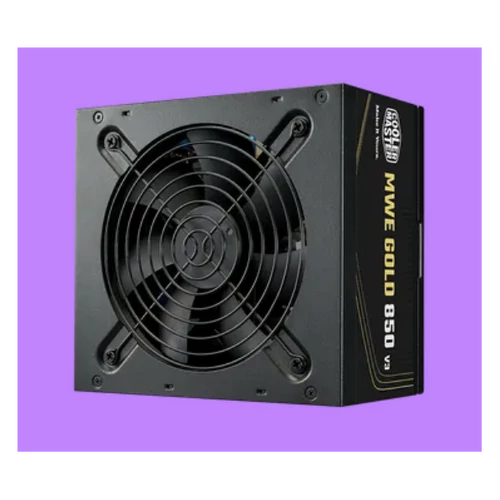

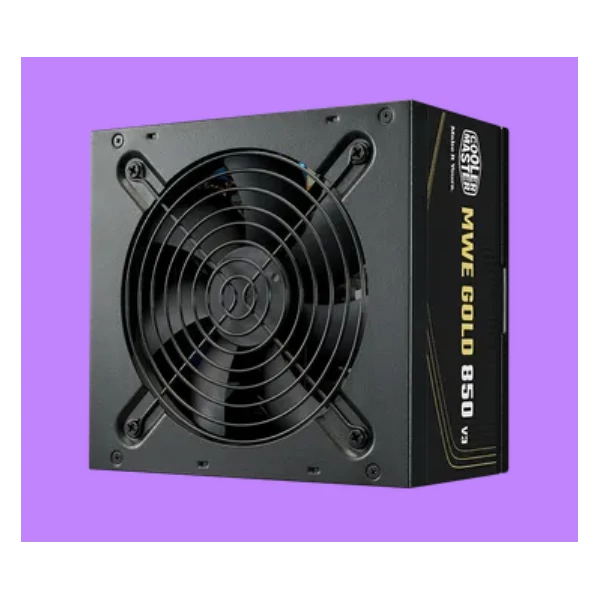

COOLER MASTER Tápegység MWE Gold V3 850W 80+ Gold ATX 3.1 EU Cooler Master

ModelMPE-8506-ACAG-B**, MPE-7506-ACAG-B**, MPE-6502-ACAAG-3B**, MPE-5502-ACAAG-3B**

ATX VersionATX 12V Ver. 3.1

PFCActive PFC

Input Voltage100-240V

Input Current10-6A (850/750W), 10-5A (650W), 8-4A (550W)

Input Frequency50-60Hz

Dimensions (L x W x H)140 x 150 x 86 mm

Fan Size120mm

Fan BearingHDB

Fan Speed2400 RPM (850/750/650W), 1800 RPM (550W)

Efficiency?90% @ Typical Load

80 PLUS Rating80 PLUS Gold

ErP 2014 Lot 3Yes

Operating Temperature0-40°C

Power Good Signal100 - 150 ms

Hold Up Time?16ms at 80% Load

MTBF>100,000 Hours (850/750W), >100,000 Hours @ 25?ambient (650/550W)

ProtectionsUVP / OVP / OPP / OTP / SCP / OCP

RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

ATX 24 Pin Connectors1

EPS 8 Pin / 4+4 Pin Connectors2

PCI-e 6+2 Pin Connectors4 (850/750/650W), 2 (550W)

SATA Connectors6

Peripheral 4 Pin Connectors3

12V-2x6 (12+4 Pin) Connectors1 (850/750W)

SeriesMWE Gold Series

ModularNon Modular

Form FactorATX

80 Plus EfficiencyGold
