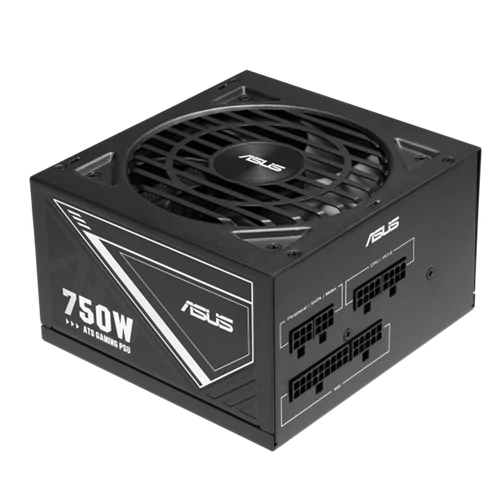

ASUS Tápegység ATS 750W 80+ Gold moduláris ASUS PER

Model

ASUS-ATS-750G

Intel Form Factor

ATX12V

PFC Type

Active PFC

Dimensions

140 x 150 x 86 mm

Efficiency

80Plus Gold

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

110-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 62.5A 0.3A 3A

Combined Load

100W 100W 750W 3.6W 15W

Total Output

750W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 6+2-pin x 2

SATA x 3

PERIPHERAL x 3

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (550mm)

CPU 1-to-2 Cable x 1 (650+100mm)

PCI-E 1-to-2 Cable x 1 (675+100mm)

SATA 1-to-3 Cable x 1 (400+120+120mm)

Peripheral 1-to-3 Cable x 3 (400+120+120mm)

Chassis Screws Package x 1

Quick Start Guide x 1

Weight

1.529 kg (single PSU)

0dB Technology

No

0dB Fan Button

No, this product is without 0dB technology.
