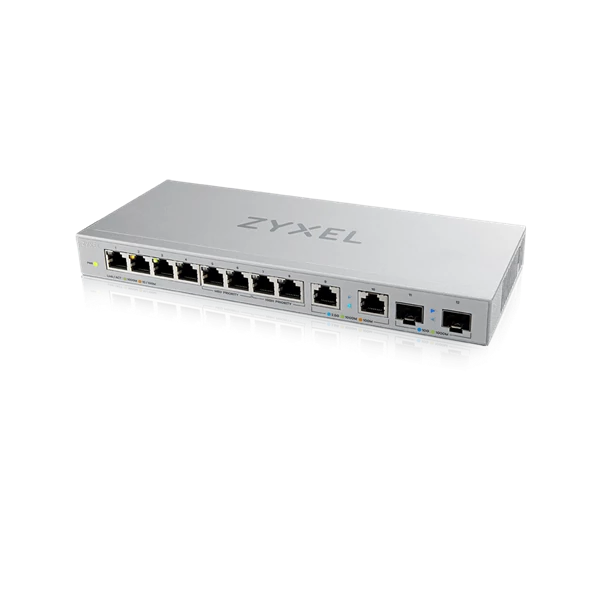

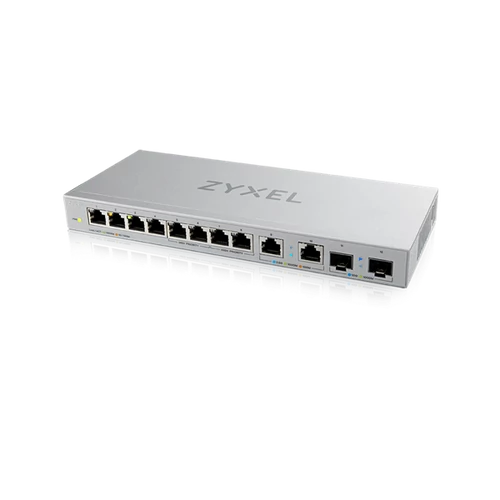

ZYXEL Switch 8x1000Mbps + 2x2500Mbps + 2xSFP+ Nem Menedzselhető, XGS1010-12-ZZ0102F Zyxel

Standard

• IEEE 802.3 10BASE-TX Ethernet


• IEEE 802.3u 100BASE-TX Fast Ethernet


• IEEE802.3ab 1000BASE-T


• IEEE 802.3bz 2500BASE-T Gigabit Ethernet


• SFF-8431


• IEEE 802.3az Energy Efficient Ethernet


• IEEE 802.3x full duplex operation and flow control

Performance

• Switching capacity: 66 Gbps


• Switching forwarding rate: 49 Mpps


• MAC address table: 16 K


• Packet buffer: 1.5 MB


• Jumbo frame support up to 12 KB

Features

• 10M,100M,1G,2.5G and 10G ports for multi speed


• Fanless and quiet


• Plug and Play, Easy use and Quick Install


• Support IEEE 802.3az Energy Efficient


• Desktop and Wall mount


• Auto-MDI/MDIX in all ports


• QoS ports for smooth media streaming, VoIP calls, and online gaming


• Weighted Fair Queuing (WFQ) priority QoS

Interface

• 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding


• 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding


• 2 x SFP+


• Hardware reset button

LED Indicator

• PWR: Power


• Port 1~8: Link/Activity



  • Green: 1000 Mbps


  • Amber: 10/100 Mbps


• Port 9~10: Link/Activity



  • Sky Blue : 2.5Gbps


  • Green : 1Gbps


  • Amber: 100Mbps


• Port 11~12: Link/Activity



  • Blue: 10Gbps


  • Green : 1000Mbps

Power Supply

• AC-to-DC external power adapter


• Input: 100-240V~50-60Hz


• Output: 12V DC/1.5A
