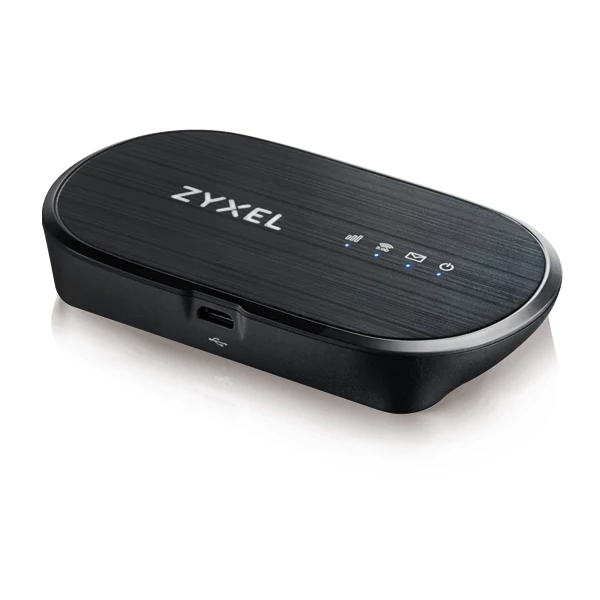

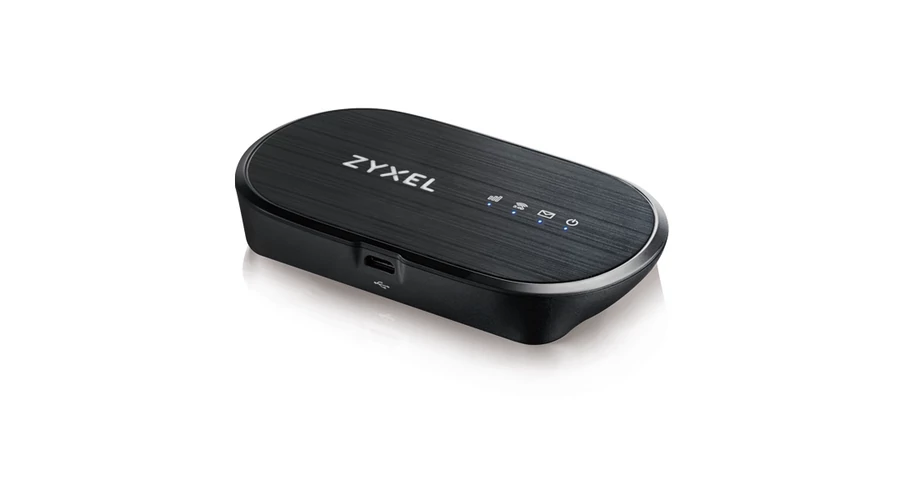

ZYXEL 3G / 4G Modem + Wireless Router N-es 300Mbps, WAH7601-EUZNV1F

LTE Air Interface

• Standard compliant: 3GPP Release 9 Category 4
• Supported frequency: B1/3/7/8/20/38/40
• LTE antenna: 2 internal antennas
• Peak data rate:
  • 150 Mbps* DL within 20 MHz bandwidth
  • 50 Mbps* UL within 20 MHz bandwidth

UMTS Air Interface

• Standard compliant: DC-HSDPA/HSPA+ compliant
• Supported frequency:
  • HSPA+/UMTS band 1/8
  • EDGE/GPRS/GSM band 3/8
  • Downlink data rate up to 42 Mbps*
  • Uplink data rate up to 5.76 Mbps*

WiFi Air Interface

• Standard compliant: IEEE 802.11 b/g/n, 2.4 GHz
• WiFi 2.4 GHz antenna: 2 internal antennas
• Speed: 300 Mbps for 2.4 GHz*

Hardware Interface

• USB 2.0 high speed for network access
• One mini SIM (2FF) UICC/USIM card slot
• One micro SD card slot up to 32 GB
• Buttons:
  • Power on/off button
  • WPS button
  • Reset button
• LED display:
  • Power
  • 2G/3G/4G network status
  • WiFi status
  • SMS status

Battery

• Removable li-polymer battery
• 3.7 V, 2000 mAh
• Up to 8 hours operating time
  (Depends on network environment)
