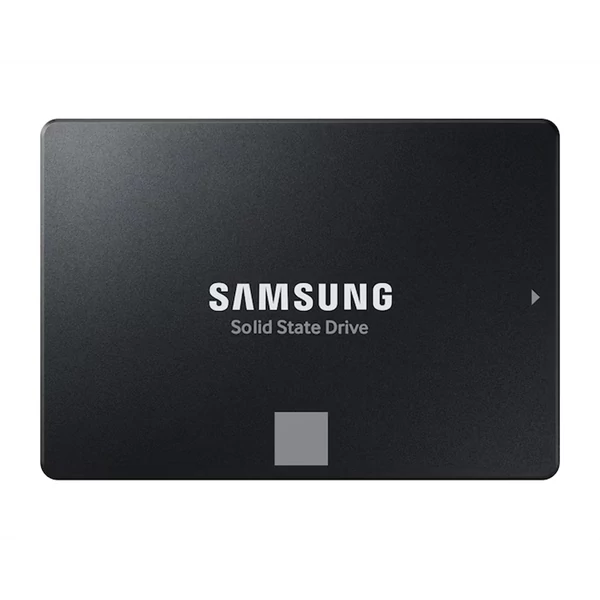

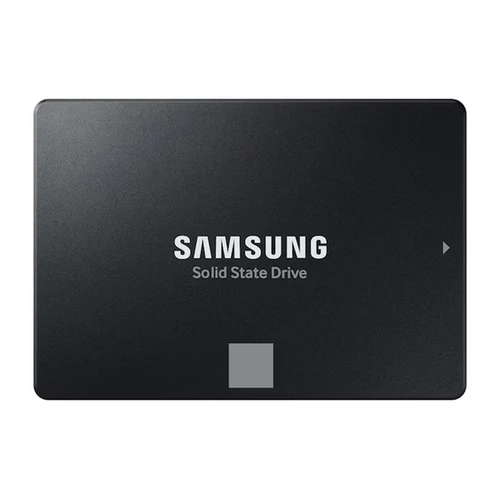

SAMSUNG SSD 870 EVO SATA III 2.5 inch 8TB SMG

General Feature

• ApplicationClient PCs


• Capacity8 TB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)


• Form Factor2.5 inch


• InterfaceSATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface


• Dimension (WxHxD)100 X 69.85 X 6.8 (mm)


• WeightApporx. 48.0g Weight


• Storage MemorySamsung V-NAND TLC


• ControllerSamsung in-house Controller


• Cache Memory8GB LPDDR4

Special Feature

• TRIM SupportTRIM Supported


• S.M.A.R.T SupportS.M.A.R.T Supported


• GC (Garbage Collection)Auto Garbage Collection Algorithm


• Encryption SupportAES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)


• WWN SupportWorld Wide Name supported


• Device Sleep Mode SupportYes

Performance

• Sequential ReadUp to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration


• Sequential WriteUp to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated


• Random ReadUp to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated


• Random WriteUp to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Environment

• Average Power Consumption (system level)Average: Read 2.2 W / Write 2.6 W


• Power consumption (Idle)Max. 40 mW * Actual power consumption may vary depending on system hardware & configuration


• Allowable Voltage5V ± 5% Allowable voltage


• Reliability (MTBF)1.5 Million Hours Reliability (MTBF)


• Operating Temperature0 - 70 ? Operating Temperature


• Shock1,500 G & 0.5 ms (Half sine)

Accessories

• Installation KitNot Available

Software

• Management SWMagician Software for SSD management, Data Migration Software for SSD upgrade
