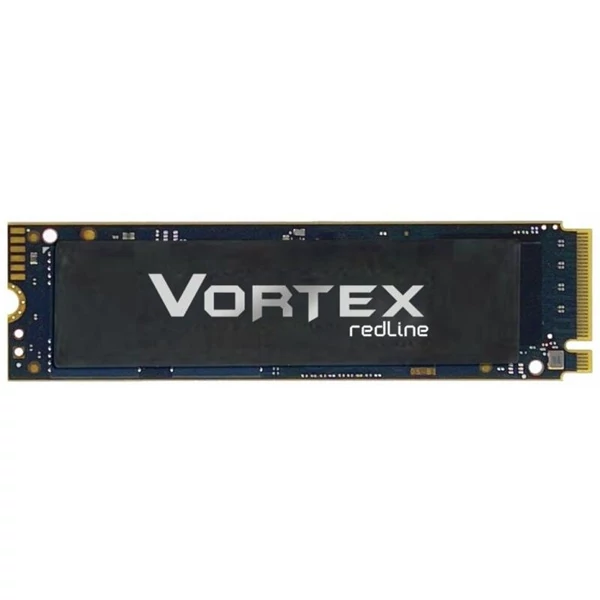

MUSHKIN SSD M.2 2280 NVMe PCI-E Gen4x4 512GB, VORTEX GSKILL

General

Brand

Mushkin Enhanced

Series

Vortex

Model

MKNSSDVT512GB-D8

Type

M.2 (2280) Internal Solid State Drive (SSD)

Used For

Consumer

UPC

846651033642

Physical

Form Factor

M.2 (2280)

Capacity

512GB

Interface

PCIe Gen4 x4 NVMe 1.4

Controller

InnoGrit IG5236

Height

3.8mm

Width

80.0mm

Depth

22.0mm

Weight

7g

Performance

Max Sequential Read

Up to 6750MB/s

Max Sequential Write

Up to 2635MB/s

Max 4K Random Read IOPS

Up to 200,000

Max 4K Random Write IOPS

Up to 645,000

MTBF

1,500,000 hours

TBW

250TB

Features

Features

MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected

     - Built-in LDPC ECC provides the most-powerful data correction level in use today

     - End-to-end data path protection

     - Global wear-leveling evens program/erase counts across data blocks to extend lifespan

512MB DDR4 DRAM

SLC caching accelerates burst performance

L1.2 power mode support for ultra-low power consumption

NVMe Security Erase support

NVMe Deallocate function support (NVMe equivalent of TRIM command)

High-reliability 3D NAND flash

S.M.A.R.T. support

User-upgradeable firmware

Temperature sensor

RoHS, FCC, CE

Power Consumption (Idle):  0.1W

Power Consumption (Active):  Up to 7W

Max sequential speeds and IOPS measured using CrystalDiskMark 8.0.1 x64.

Environmental

Operating Temperature

0°C-70°C

Storage Temperature

-40°C-85°C

Max Shock Resistance

1500G

Power Supply

3.3V DC
