Huawei eKit ICD OPS,I5-12450H,DDR4 8GB,256GB SSD,Windows11 IOT Enterprise SAC,DC19V,Max 90W,195mm,180mm,30mm Huawei eKit

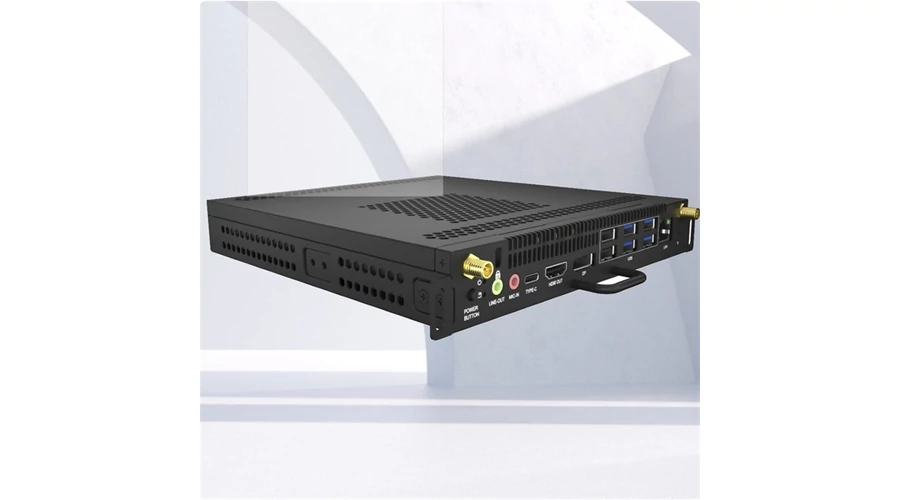

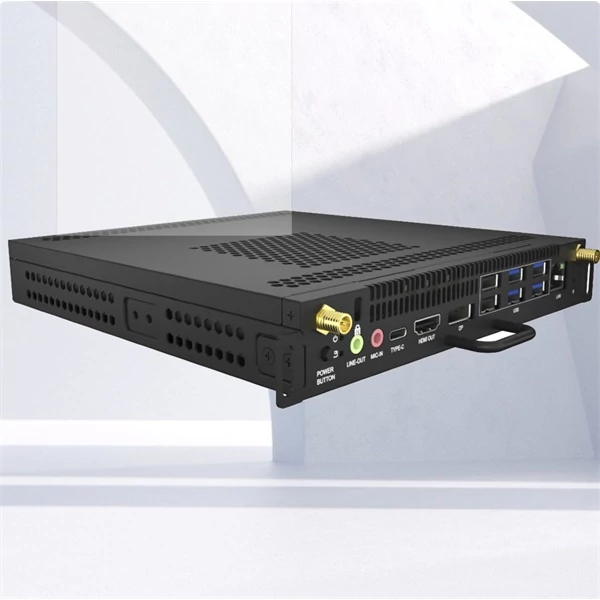

ICD OPS i5 D, using Intel ® Core™ i5-10500 processor, conforms to the industry specification of Intel ® OPS-C. It supports M.2 SSD storage and DDR4 dual-channel memory. In addition, the ICD OPS i5 D utilizes the latest generation of Intel ® UHD Graphics 630 to provide excellent image processing capabilities and supports two independent 4K2K video outputs. It is suitable for scenarios such as digital signage, education and conference whiteboards

Specifications CPU Support • Intel ® Core™ i5-10500 processor Chipset ? Intel ® H510 PCH Graphic ? Intel ® UHD Graphics 630 Memory ? 8GB DDR4(4GB *2 ) Motherboard Interface ? 1 x Power button ? 1 x Recovery button ? 1 x RJ45 ? 3 x USB 3.0 ? 3 x USB 2.0 ? 1 x HDMI1.4 ? 1 x DP1.2 ? 1x Audio line out ? 1x MIC IN Storage ? 1x M.2 2280 ? 128GB SSD storage Expansion ? 1x M.2 2230 Wi-fi/Bluetooth 2-in-1 module AC3168 Environment ? Operating temperature: 0°C to 40°C ? Storage temperature: -20°C to 70°C ? Humidity: 5% to 95%(RH) Physical Properties ? Dimension W*L*H: 195mm x 180mm x 30mm, Color: Black ? Net Weight: About 1.5kg Power Supply ? DC 19V/4.74A ? Power 90W ? ICD OPS i5 D Certification ? CCC/SRRC/VCCI/BQB/RoHS/REACH/WEEE/CE/CB etc,.Operation System ? Windows 10 IoT(EE
