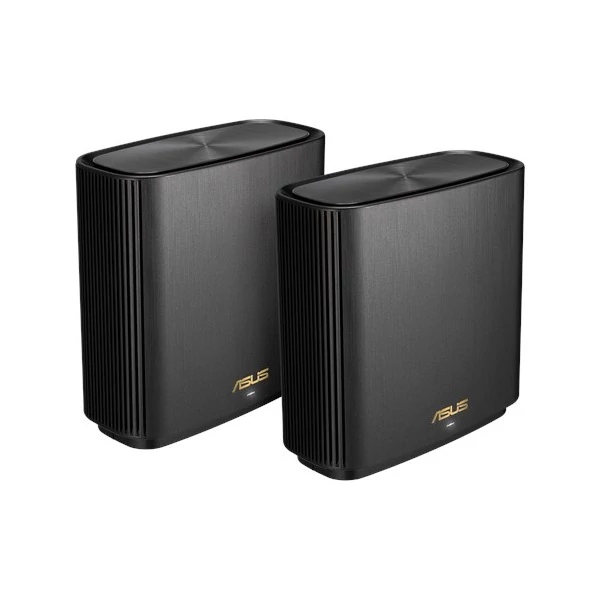

ASUS Wireless ZenWifi Mesh Networking system AX6600, XT8(B-2-PK) ASUS PER

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6

Very large homes

802.11a : 6,9,12,18,24,36,48,54 Mbps

802.11b : 1, 2, 5.5, 11 Mbps

802.11g : 6,9,12,18,24,36,48,54 Mbps

802.11n : up to 300 Mbps

802.11ac (5GHZ-1):up to 867 Mbps

802.11ac (5GHZ-2):up to 3466 Mbps

802.11ax (2.4GHz) : up to 574 Mbps

802.11ax (5GHZ-1):up to 1201 Mbps

802.11ax (5GHZ-2):up to 4804 Mbps

Internal antenna x 6

2.4 GHz 2 x 2

5 GHz-1 2 x 2

5 GHz-2 4 x 4

1.5 GHz quad-core processor

256 MB Flash

512 MB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth

2.4G Hz, 5 GHz-1, 5 GHz-2

WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall: SPI intrusion detection, DoS protection

Access control:Parental control, Network service filter, URL filter, Port filter

UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

IPSec Pass-Through

PPTP Pass-Through

L2TP Pass-Through

PPTP server

OpenVPN server

PPTP client

L2TP client

OpenVPN client

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

USB 3.1 Gen 1 x 1

Range Boost

Router app

MU-MIMO

Smart Connect

Traffic Analyzer

Adaptive QoS

AiProtection Pro

Parental Control

Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3

VPN server : PPTP Server, OpenVPN Server, IPSec server

VPN client : PPTP client, L2TP client, OpenVPN client

NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

Mac OS Backup

Enhanced media server (AiPlayer app compatible)

- Image : Jpeg

- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg

- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

AiCloud personal cloud service

3G/4G data sharing

Printer Server

- Multifunctional printer support (Windows only)

- LPR protocol support

Download Master

- Support bt, nzb, http, ed2k

- Support encryption, DHT, PEX and magnet link

- Upload and download bandwidth control

- Download scheduling

AiDisk file server

- Samba and FTP server with account management

IPTV support

Roaming Assist

OFDMA

Beamforming

WPS Button, Reset Button, Power Switch

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 1.75 A current

Windows® 10

Windows® 8

Windows® 7

Mac OS X 10.6

Mac OS X 10.7

Mac OS X 10.8

160 x 75 x 161.5 mm

716 g

ZenWiFi AX

RJ-45 Cable

Power Adapter

Quick Start Guide

Warranty Card
