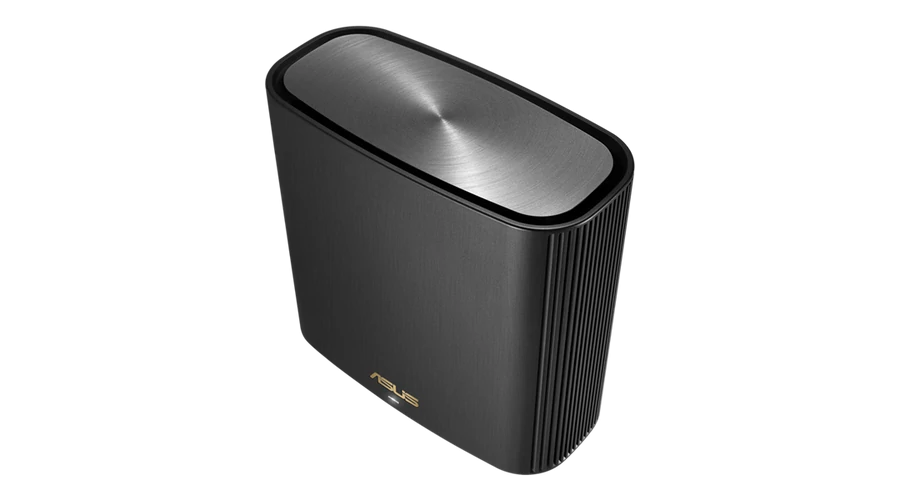

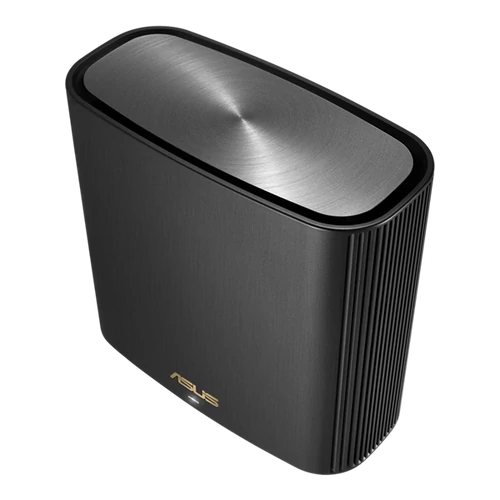

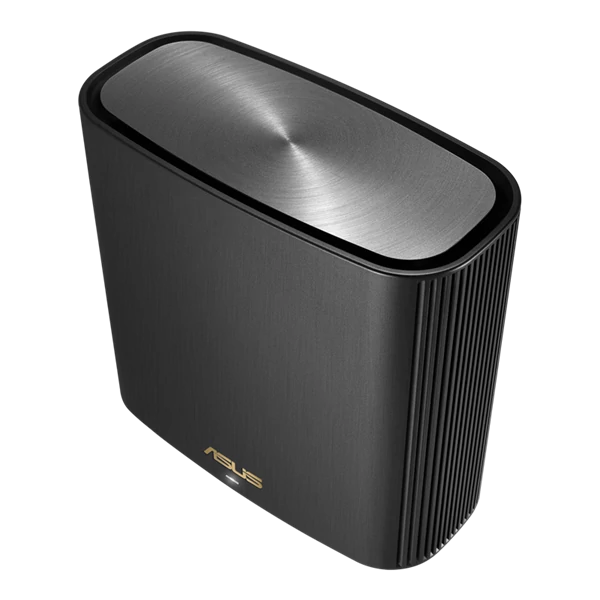

ASUS Wireless ZenWifi Mesh Networking system AX6600, XT8 V2(B-1-PK) ASUS PER

Model

ASUS ZenWiFi AX (XT8)

Model Name

XT8 (B-1-PK)
XT8 (B-2-PK)
XT8 (W-1-PK)
XT8 (W-2-PK)
XT8 (W-3-PK)

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX6600 ultimate AX performance:574+1201+4804Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 1201 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps

Antenna

Internal antenna x 6
Internal antenna x 6V

Transmit / Receive

2.4GHz 2x2
5GHz-1 2x2
5GHz-2 4x4

Memory

256 MB Flash
512 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

2.4G Hz, 5 GHz-1, 5 GHz-2

Operating Mode

Wireless router mode
Access point mode

I/O Ports

RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.1 Gen 1 x 1

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
DC Output : 12 V with max. 3 A current

Package Content

ZenWiFi AX
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card

Product Weight (g)

716 g

Product Dimensions

160 x 75 x 161.5 mm

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps."
Parental Control - Safe Browsing

Router APP

APP: ASUS Router APP

Guest Network

Support Guest Network
• Maximum Guest Network Rule : Max 9 rules

Security

WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall
• Maximum Firewall Keyword Filter : Max 64 rules
• Maximum Firewall Network Service Filter : Max 32 rules
• Maximum Firewall URL Filter : Max 64 rules

AiProtection

AiProtection Pro
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

Adaptive QoS
Traffic Monitor
Traffic Analyzer

WAN

Dual WAN
3G / 4G LTE Dongle
DMZ
DDNS

LAN

IGMP Snooping
IPTV
Wake on LAN (WOL)

Wireless

UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : Max 64 rules
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB application

File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server

Administration

Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
