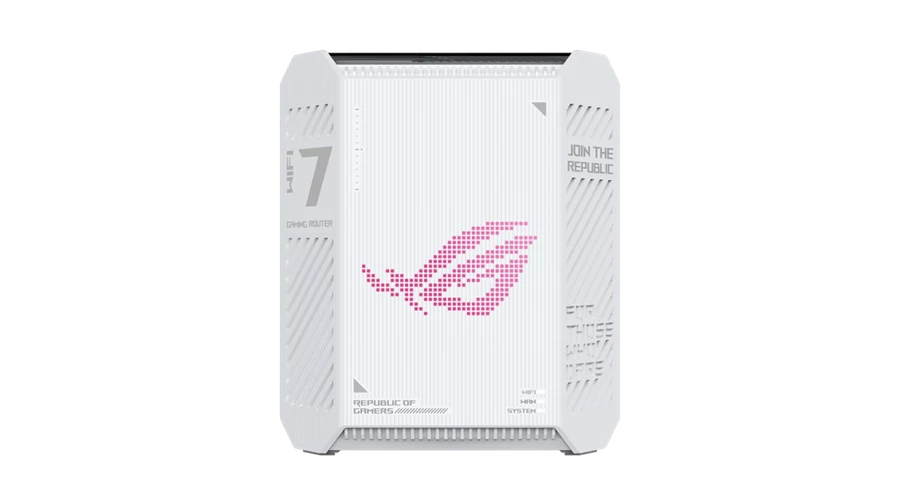

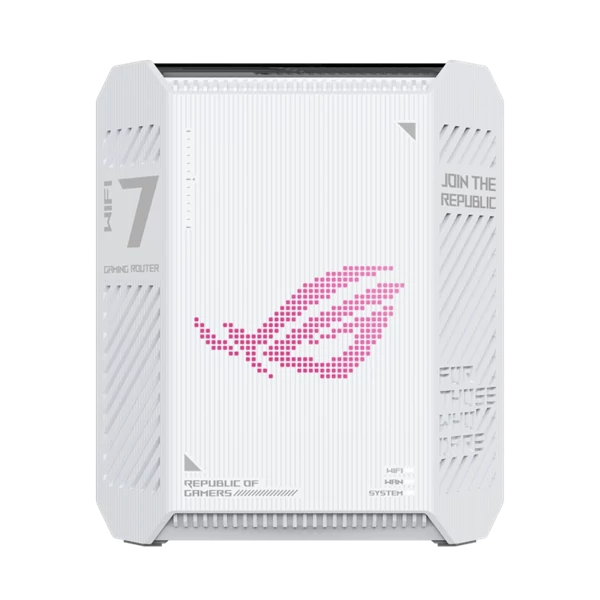

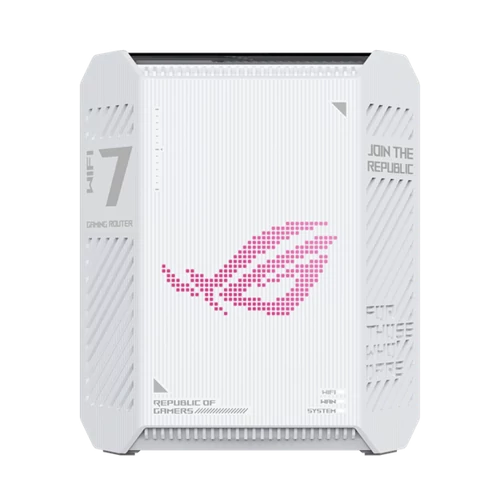

ASUS Wireless Router Dual Band BE7200 1xWAN(2.5Gbps) + 4xLAN(2.5Gbps), ROG STRIX GS-BE7200 ASUS PER

Model Name

GS-BE7200

Design

White

Network Standard

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IPv4

IPv6

Product Segment

BE7200 ultimate BE performance : 1376+5764 Mbps

WiFi Data Rate

2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps

5GHz BE: 5x5 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps

Antenna

internal antenna x 6

Transmit / Receive

2.4GHz 4x4

5GHz 5x5

Processor

2.0GHz quad-core processor

Memory

128 MB Flash
DDR4 1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz

5 GHz

Operating Mode

Wireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater Mode

I/O Ports

1 x 2.5G for WAN
4 x 2.5G for LAN

Buttons

Power, WPS, Reset

LED Indicator

WiFi
WAN
SYSTEM

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 2.5A current

Package Content

WiFi7 Dual-Band router
ROG RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Dimensions

182.3 x 80 x 207 mm

AiMesh

• Primary AiMesh Router

• AiMesh Node

Game

Game Boost / Acceleration

Mobile Game Mode

Gear Accelerator

ROG_First

OpenNAT (Game Profile)

Gaming Port

Gaming Network

Parental Control

"Allow you to block access to unwanted websites and apps."

Time Scheduling

Reward

Parental Control Customized Internet Schedule

• Maximum Parental Control Profile : 64

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

Support Guest Network

• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal

Security

AiProtection

VPN

WiFi Encryption : WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection

AiProtection

• Router Security Assessment

• Malicious Site Blocking

• Advertisement Blocking

• Tracker Blocking

VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Traffic Control

Adaptive QoE

• Bandwidth Monitor

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN

Internet Connection Type :

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

• IPSec

NAT Passthrough : NAT Passthrough :

NAT Passthrough : • PPTP Pass-Through

NAT Passthrough : • L2TP Pass-Through

NAT Passthrough : • IPSec Pass-Through

NAT Passthrough : • RTSP Pass-Through

NAT Passthrough : • H.323 Pass-Through

NAT Passthrough : • SIP Pass-Through

NAT Passthrough : • PPPoE Relay

LAN

DHCP Server

IGMP Snooping

IPTV

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

Wireless

MU-MIMO

User Interface

WEB: ASUSWRT

APP: ASUS Router APP

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
