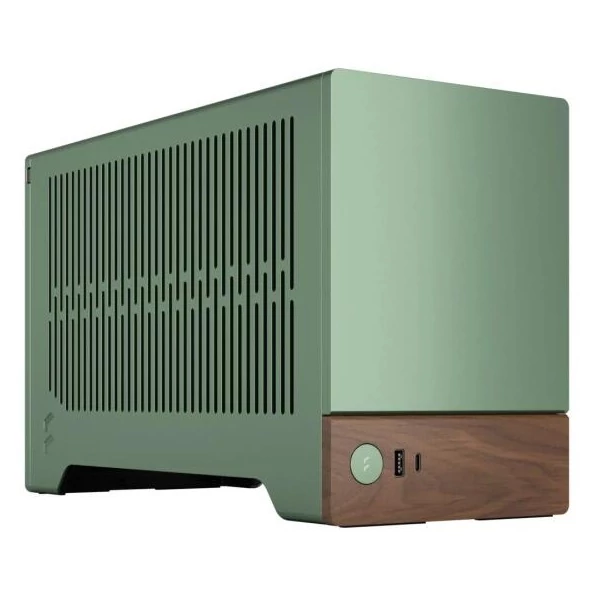

FRACTAL DESIGN Ház mITX Terra (PCI-E 4.0) Tápegység nélkül, Zöld FRACTAL DESIGN

•


  Dedicated 2.5" drive mounts





  2 (included)





•


  Expansion slots





  3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)





•


  Front interface





  1x USB Type-C 20Gbps (USB 3.2 Gen 2x2), 1x USB Type-A 5Gbps (USB 3.0), Power Button





•


  Total fan mounts





  1x 120 mm





•


  Bottom fan





  1x 120 mm





•


  Tool-less push-to-lock





  Both side panels and top panel (can also be locked with screws)




Compatibility

•


  Motherboard compatibility





  mITX





•


  Power supply type





  SFX-L/ SFX





•


  PSU max length





  130 mm





•


  Side radiator





  1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)





•


  GPU max length





  322 mm





•


  GPU max width (if GPU height is lower than 131 mm)





  72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)





•


  GPU max width (if GPU height 131-145mm)





  62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)





•


  GPU max height





  145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)





•


  *CPU cooler max height





  48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)





•


  *Additional comment





  Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.




Dimensions

•


  Case dimensions (LxWxH)





  343 x 153 x 218 mm





•


  Case dimensions w/o feet/protrusions/screws





  343 x 153 x 198 mm





•


  Package dimensions (LxWxH)





  394 x 215 x 292 mm





•


  Net weight





  3.1 kg





•


  Gross weight





  4.0 kg





•


  Volume





  10.4 liter (excluding feet), 11.4 liter (external dimensions)
