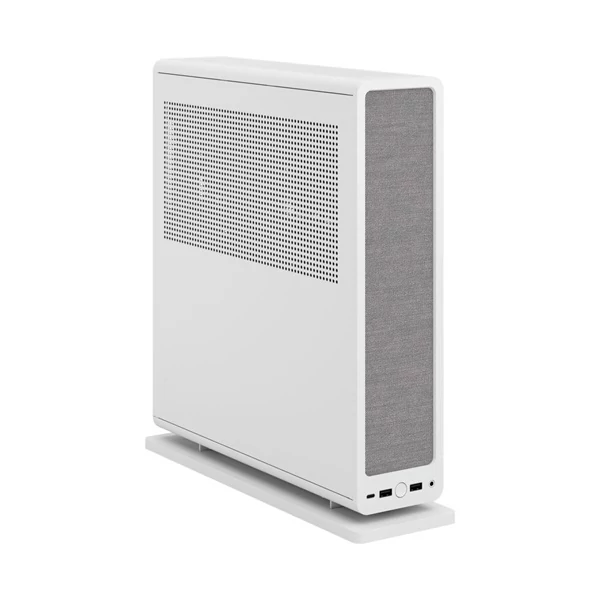

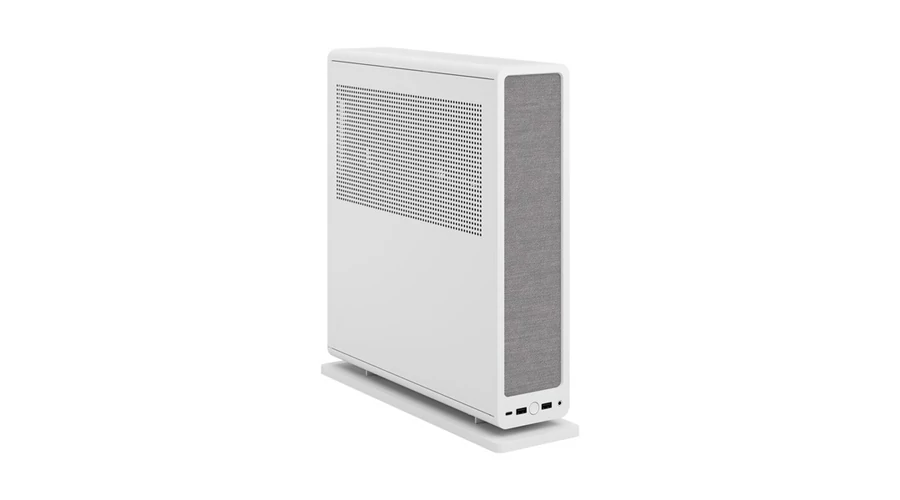

FRACTAL DESIGN Ház Mini ITX / SFF Ridge (PCI-E 4.0) Tápegység nélkül, Fehér FRACTAL DESIGN

•


  Dedicated 2.5" drive mounts





  4x included, 4x positions total





•


  Expansion slots





  3-slot





•


  Front interface





  1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED





•


  Total fan mounts





  2x 120/140 mm and 3x 80 mm





•


  Side fan





  2x 120/140 mm (2x PWM Aspect fan 140 mm included)





•


  Top fan





  3x 80 mm (not included)





•


  Cable routing space





  13,8 mm (behind PSU)





•


  Tool-less slide with thumbscrew lock





  Side panels





•


  Captive thumbscrews





  Side panels





•


  Left side panel





  Steel





•


  Right side panel





  Steel




Compatibility

•


  Motherboard compatibility





  Mini ITX





•


  Power supply type





  SFX, SFX-L





•


  Side radiator





  120 mm when ≤175mm long GPUs are installed (280 mm without GPU)





•


  PSU max length





  SFX-L





•


  GPU max length





  325 mm with SSD installed. 335 mm without SSD installed.





•


  GPU max height





  125 mm with top fan(s) installed, 137 mm without top fans





•


  GPU max thickness





  57 mm with 2x 140 mm fans installed, 82 mm without side fans





•


  CPU cooler max height





  70 mm




Dimensions

•


  Case dimensions





  Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm





•


  Case dimensions w/o feet/protrusions/screws





  355 x 95 x 375 mm





•


  Net weight





  4.3 kg





•


  Package dimensions (LxWxH)





  426 x 167 x 431 mm





•


  Gross weight





  5.5 kg





•


  Volume





  12.6 liter
