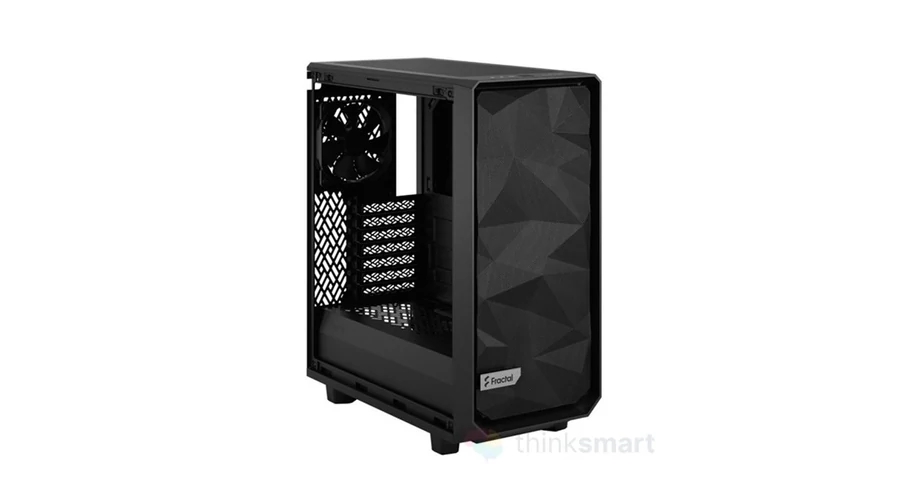

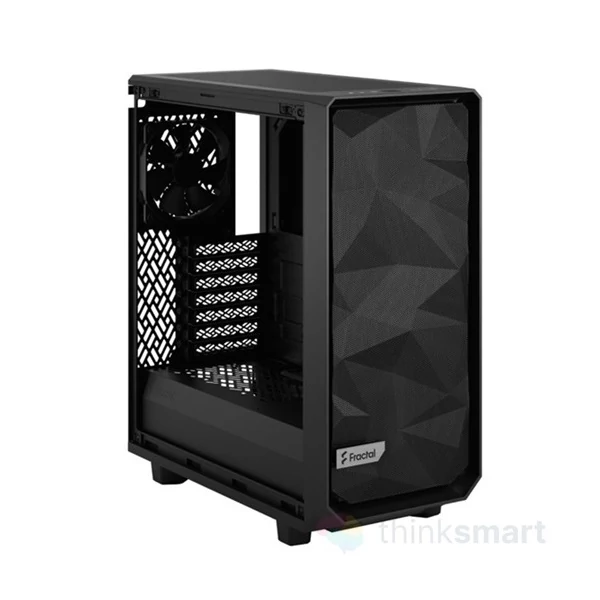

FRACTAL DESIGN Ház Midi ATX Meshify 2 Compact Tápegység nélkül, Fekete Üvegfalú FRACTAL DESIGN

•


  3.5"/2.5" Universal drive mounts





  2 (included)





•


  Dedicated 2.5" drive mounts





  4 (2 included)





•


  Expansion slots





  7





•


  Front interface





  1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button





•


  Total fan mounts





  7x 120 or 4x 140 mm and 2x 120 mm





•


  Front fan





  3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)





•


  Top fan





  2x 120/140 mm





•


  Rear fan





  1x 120 mm, (1x Dynamic X2 GP-12 included)





•


  Bottom fan





  1x 120 mm (requires removal of HDD cage)





•


  Dust filters





  Top, front and bottom





•


  Fixed velcro straps





  Yes





•


  Cable routing grommets





  Yes





•


  Captive thumbscrews





  HDD, SSD and PSU brackets





•


  Left side panel





  Steel





•


  Right side panel





  Steel




Compatibility

•


  Motherboard compatibility





  ATX / mATX / Mini-ITX





•


  Power supply type





  ATX





•


  PSU max length





  200 mm (165 mm with HDD cage and front fan)





•


  GPU max length





  341 mm (360 mm without front fan)





•


  CPU cooler max height





  169 mm





•


  Front radiator





  Up to 360/280 mm





•


  Top radiator





  Up to 240 mm





•


  Rear radiator





  120 mm





•


  Bottom radiator





  120 mm (requires removal of HDD cage)





•


  Cable routing space





  17-28 mm





•


  Radiator Support – Additional Details





  Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.




Dimensions

•


  Case dimensions (LxWxH)





  424 x 210 x 475 mm





•


  Case dimensions w/o feet/protrusions/screws





  412 x 210 x 455 mm





•


  Package dimensions (LxWxH)





  542 x 320 x 554 mm





•


  Net weight





  Solid: 7.7 kg TG: 8.1 kg





•


  Gross weight





  Solid: 9.3 kg TG: 9.8 kg





•


  Volume





  39.4 Liters
