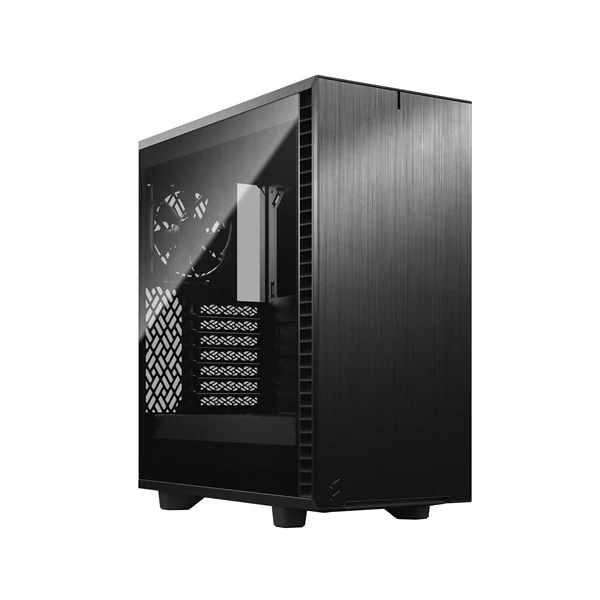

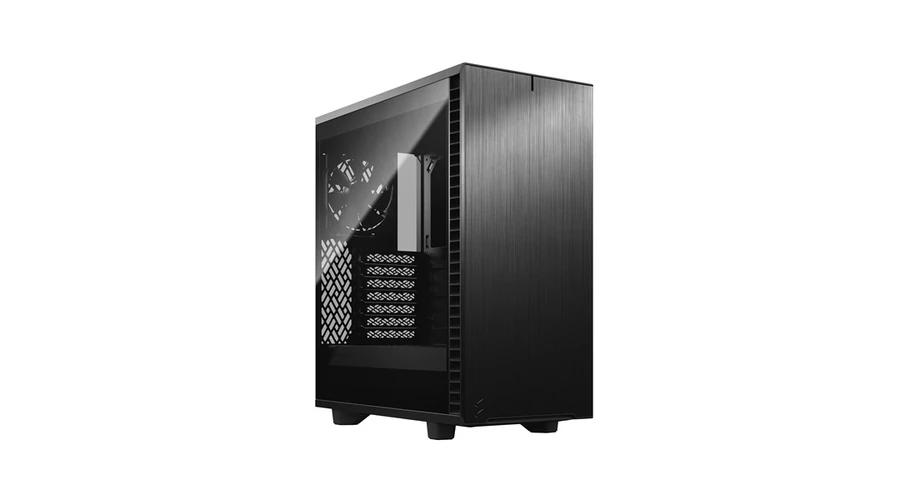

FRACTAL DESIGN Ház Midi ATX Define 7 Compact Tápegység nélkül, Fekete Üvegfalú FRACTAL DESIGN

•


  3.5"/2.5" drive mounts





  2





•


  Dedicated 2.5" drive mounts





  2 trays included, 4 positions total





•


  Expansion slots





  7





•


  Front interface





  1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button





•


  Total fan mounts





  7x 120 or 4x 140 mm and 2x 120 mm





•


  Front fan





  3x 120 or 2x 140 mm, (1x Dynamic X2 GP-14 included)





•


  Top fan





  2x 120 or 2x 140 mm





•


  Rear fan





  1x 120 mm, (1x Dynamic X2 GP-12 included)





•


  Bottom fan





  1x 120 mm (requires removal of HDD cage)





•


  Dust filters





  Top, 2x front, full length bottom





•


  Fixed velcro straps





  Yes





•


  Cable routing grommets





  Yes





•


  Captive thumbscrews





  HDD brackets, SSD brackets, PSU bracket





•


  Left side panel





  Industrial sound-damped steel or Tempered Glass





•


  Right side panel





  Industrial sound-damped steel




Compatibility

•


  Motherboard compatibility





  ATX / mATX / Mini-ITX





•


  Power supply type





  ATX





•


  PSU max length





  200 mm total (165 mm w/ HDD cage and front fan)





•


  GPU max length





  341 mm (360 mm without front fan)





•


  CPU cooler max height





  169 mm





•


  Front radiator





  Up to 360/280 mm (max 145 mm width)





•


  Top radiator





  Up to 240 mm





•


  Rear radiator





  120 mm





•


  Bottom radiator





  120 mm (requires removal of HDD cage)





•


  Cable routing space





  17-28 mm




Dimensions

•


  Case dimensions (LxWxH)





  427 x 210 x 474 mm





•


  Case dimensions w/o feet/protrusions/screws





  415 x 210 x 451 mm





•


  Package dimensions (LxWxH)





  536 x 310 x 521 mm





•


  Net weight





  Solid version: 8.61 kg, TG Version: 8.76 kg





•


  Package weight





  Solid version: 10.87 kg, TG Version: 11.04 kg





•


  Volume





  39.3 liters
