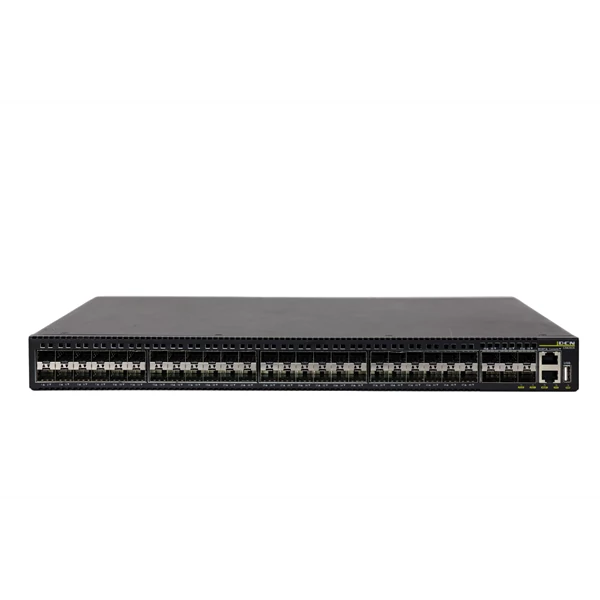

DCN Switch L3 48x 100 / 1000Base-X SFP + 6x 1 / 10GBase-X SFP + , redundant PSU, CS6200X-48S6X-EI DCN

Item

CS6200X-24T6X-EI

CS6200X-48T6X-EI

CS6200X-48T6X-P-EI

Port Fisik

24*10/100/1000Base-T + 6*10GbE(SFP+) MIDX Otomatis

48*10/100/1000Base-T + 6*10GbE(SFP+) MIDX Otomatis

Port Manajemen

1 x RJ45 port Ethernet Manajemen

1x port Konsol

1x interface USB2.0

Performa

Kapasitas Switching

168Gbps

216Gbps

Throughput

125Mpps

161Mpps

Frame Jumbo

12K

12K

12K

12K

Alamat MAC

32K

32K

32K

32K

Tabel ARP

8K

8K

8K

8K

Routing Table

12K

12K

12K

12K

Tabel ACL

3K

3K

3K

3K

Fisik

Dimensi (L*T*D)

440mm x 44mm x 380mm

440mm x 44mm x 380mm

440mm x 44mm x 380mm

440mm x 44mm x 380mm

Kelembaban Relatif

5%~95%, non-condensing

Suhu

Kerja  0°C~50°C, penyimpanan -40°C~70°C

Catu Daya

AC:100~240VAC, 50~60Hz

Konsumsi Daya

<50W

<55W

<820W

<1180W

PoE

NA

NA

Fitur Utama

Fitur L1, L2

IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z(1000BASE-X), IEEE802.3ab(1000Base-T), IEEE802.3ae(10GBase), IEEE802.3x, IEEE802.3ak(10GBASE-CX4)

Deteksi loopback port
LLDP dan LLDP-MED
UDLD
802.3ad LACP, maks 128 grup trunks dengan  maks 8 ports untuk setiap  trunk
LACP load balance

N:1 Port Mirroring
RSPAN
ERSPAN

IEEEE802.1d(STP)
IEEEE802.1w(RSTP)
IEEEE802.1s(MSTP)
Root Guard
BPDU Guard
Tunel BPDU

802.1Q, VLAN 4K
VLAN MAC, VLAN Vocie, PVLAN, VLAN Protokol,  VLAN Multicast
QinQ, Fleksibel QinQ
GVRP
N:1 VLAN Translation
Broadcast / Multicast / Unicast Storm Control

Snooping IGMP v1/v2/v3 dan L2 Query
Snooping ND
Snooping MLDv1/v2

Keamanan Port

Flow Control: HOL, IEEE802.3x
Bandwidth Control

Fitur L3

Routing Static,RIPv1/v2,OSPFv2,BGP4
OSPFv3, BGP4+
Proses multiple OSPF
Routing LPM
Policy-based Routing(PBR)  untuk  IPv4 dan IPv6
VRRP
URPF,
ECMP
BFD

IGMP v1/v2/v3, IGMP Proxy,
DVMRP,PIM-DM,PIM-SM,PIM-SSM, Any Cast RP, MSDP
Route Multicast Static
Multicast Receive Control
Deteksi Sumber Multicast ilegal

ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
Anti ARP Cheat, Anti ARP Scan

DNS Client, DNS Relay

Tunel GRE

IPv6

Tunel 6to4, Tunel Configured, Tunel ISATAP, Tunel GRE
ICMPv6,ND,DNSv6
Routing LPM IPv6 LPM,IPv6 Policy-based Routing(PBR)
IPv6 VRRPv3,IPv6 URPF,IPv6 RA
RIPng,OSPFv3,BGP4+
Snooping MLD, VLAN Multicast IPv6
MLDv1/v2, PIM-SM/DM for IPv6, IPv6 Any Cast RP, IPv6 ACL, IPv6 QoS

QoS

8 Queues
SWRR, SP, WRR, WDRR, SWDRR
Klasifikasi lalu-lintas berdasarkan pada  802.1p COS, ToS, DiffServ DSCP, ACL, nomer port
Traffic Policing
PRI Mark/Remark

ACL

IP ACL ,MAC ACL,IP-MAC ACL
Standar dan Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS
Redirect dan Statistik
Aturan dapat dikonfigurasi ke port, VLAN, interface routing VLAN
Time Ranged ACL

Keamanan

802.1x AAA
Port, Otentikasi berbasis MAC
Penghitungan berdasarkan lamanya waktu dan lalu lintas
VLAN Guest  dan  VLAN otomatis

RADIUS untuk IPv4 dan IPv6

TACACS+ untuk IPv4 dan IPv6

MAB

DHCPv4/v6

Server/Klien DHCP untuk  IPv4/IPv6
Relay DHCP/Option 82
Snooping DHCP/Option 82

Monitor lalu-lintas

Analisa lalu lintas sFlow

Manajemen keamanan Jaringan

CLI, WEB, Telnet, SNMPv1/v2c/v3 melalui IPv4 dan IPv6
Syslog dan external Syslog Server
HTTP SSL
SNMP MIB, SNMP TRAP
FTP/TFTP
SNTP/NTP
RMON 1,2,3,9
Otentikasi oleh Radius/TACACS
SSH v1/v2
Image firmware ganda/File konfigurasi
802.3ah OAM, 802.1ag OAM

Fitur Data Center

VSF(Virtual Switch Framework)
