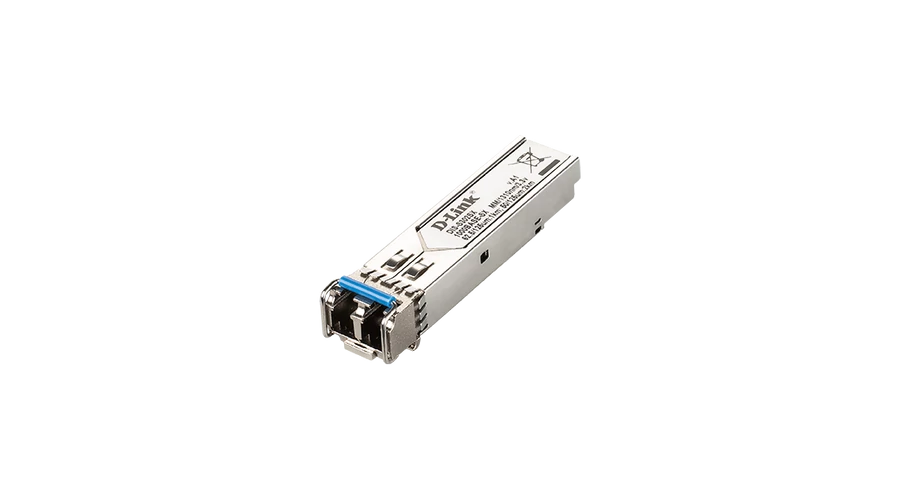

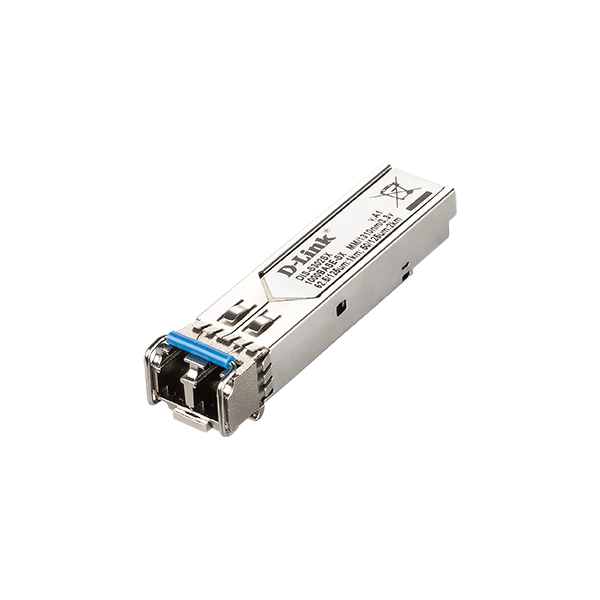

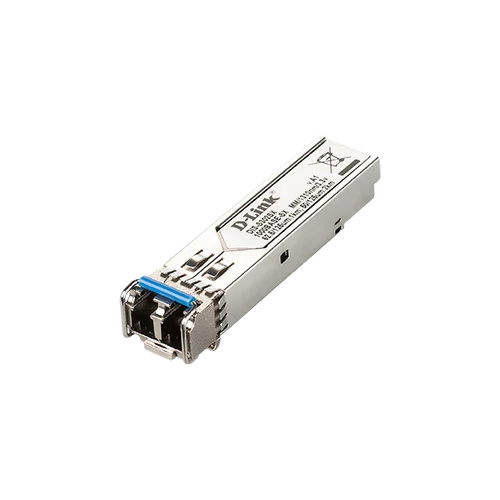

D-LINK Switch Ipari SFP Modul 1000Base-SX Single mód, DIS-S302SX D-Link

Features

• Hot Pluggable


• MSA Compliant


• RoHS Compliant

Standard

Compliant Standard

• IEEE802.3z


• 1000BASE-SX

Transceiver Type

• SFP

Fiber Media support

• Multi-Mode

Distance

• Max. Distance or other supported cable type



  • 62.5/125um fiber: 1km


  • 50/125um fiber: 2km


  • 62.5/125um OM1 1km


  • 50/125um OM2 1km


  • 50/125um OM3 2km


  • 50/125um OM4 2km





Speed

• 1.25Gbps

Interface

Connector

• Duplex LC Connector

Direction

• Single-direction

Wavelength

• 1310 nm

Output Optical Power (TX Optical Power)

• Max. (dBm) -3dBm


• Min. (dBm) -9dBm

Input Optical Power (RX Optical Power)

• Max. (dBm) -3dBm


• Min. (dBm) -22dBm

Sensitivity (dBm)

• -22dBm

Cable Type

• Multi-mode 50/125um or 62.5/125um fiber

Operating

Power (V)

• 3.3V

Max Input Current (mA)

• 300mA

Power Budget (MIN Power Budget) (dB)

• 13dB

MAX Power Budget (dB)

• 19dB

Heat Generated (kJ/h)

• 2.376 kJ/h

MTBF (hours)

• 224,167 hours

Physical & Environment

Operation Temperature (°C)

• -40-85°C

Storage Temperature (°C)

• -40-85°C

Operating Humidity (%)

• 5% ~ 95%

Storage Humidity (%)

• 5% ~ 95%

Dimension ( W x D x H)

• 13.7mm x 55.4mm x 8.5mm

Weight

• 20g

Bail latch colour

• Blue

Certifications

Emission (EMI)

• FCC Class B


• CE Class B


• VCCI Class B

Safety

• LVD


• EN 60825-1
