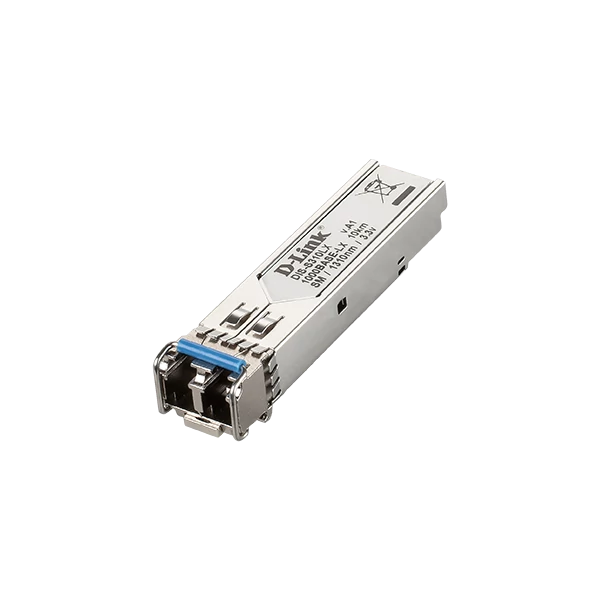

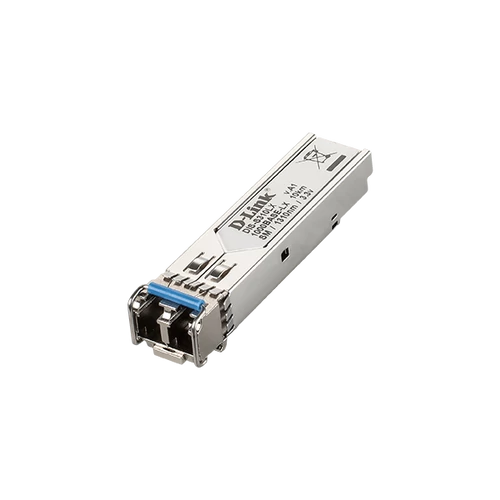

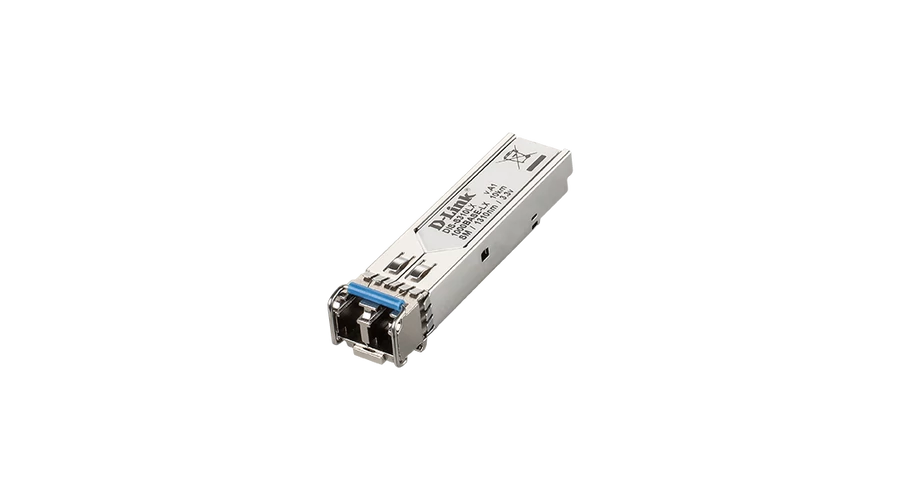

D-LINK Switch Ipari SFP Modul 1000Base-LX Single mód, DIS-S310LX D-Link

Features

• Hot Pluggable


• MSA Compliant


• RoHS Compliant

Standard

Compliant Standard

• IEEE802.3z


• 1000BASE-LX

Transceiver Type

• SFP

Fiber Channel FC-PI standard

• 100-SM-LC-L

Fiber Media support

• Single-Mode

Distance

• 10km

Speed

• 1.25Gbps

Interface

Connector

• Duplex LC Connector

Single/bi Direction

• Single-direction

Wavelength

• 1310nm

Output Optical Power (TX Optical Power)

• MAX.: -3dBm


• MIN.: -8 dBm

Input Optical Power (RX Optical Power)

• MAX.: - 3 dBm


• MIN.: - 24 dBm

Sensitivity

• -24dBm

Cable Type

• Single-mode 9/125um fibre

Operating

Power

• 3.3V

Max Input Current

• 300mA

Power Budget (MIN Power Budget)

• 16dB

MAX Power Budget

• 21dB

Heat Generated

• 2.376 kJ/h

MTBF (hours)

• 223,857 hours

Physical & Environment

Operation Temperature

• -40~85?

Storage Temperature

• -40~85?

Humidity (Operating)

• 5%~95%

Humidity (Storage)

• 5%~95%

Dimension ( W x D x H )

• 13.7 x 55.4 x 8.5mm

Weight

• 20g

Bail latch colour

• Blue

Emission (EMI) and Safety Certifications

EMI

• CE


• FCC


• VCCI

Safety

• LVD


• EN 60825-1


• EN 60825-2
