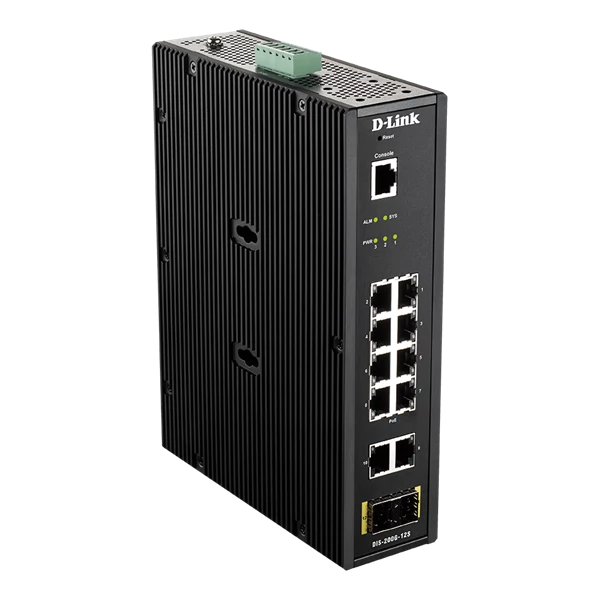

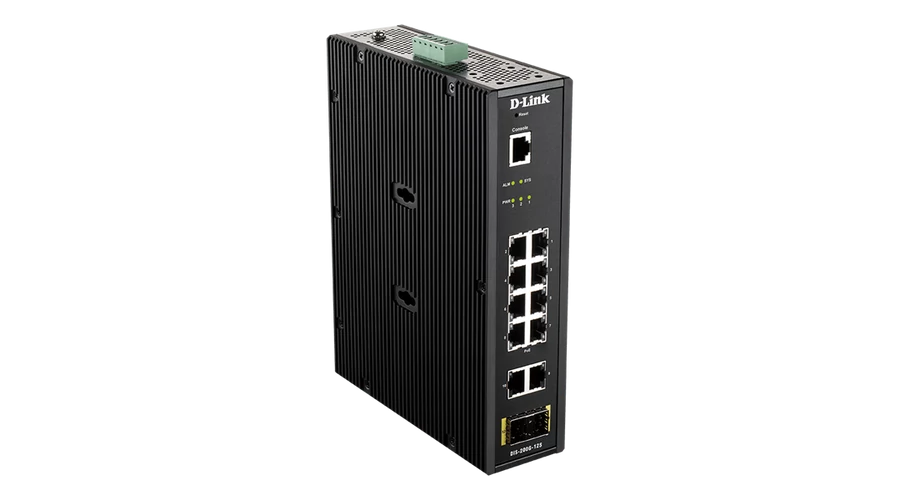

D-LINK Switch Ipari 10x1000Mbps + 2xSFP + 1x konzol port Menedzselhető Fémházas, DIS-200G-12S D-Link

General

Hardware Version

DIS-200G-12S:  A1

DIS-200G-12SW:  A1

DIS-200G-12PS:  A1

DIS-200G-12PSW:  A1

Number of Ports

DIS-200G-12S and DIS-200G-12SW:

• 10 x 10/100/1000BASE-T ports

• 2 x SFP ports

• 1 x RJ-45 Console port

DIS-200G-12PS and DIS-200G-12PSW:

• 8 x 10/100/1000BASE-T PoE ports

• 2 x 10/100/1000BASE-T ports

• 2 x SFP ports

• 1 x RJ-45 Console port

Port Functions

• IEEE 802.3 for Ethernet

• IEEE 802.3u for Fast Ethernet

• IEEE 802.3ab for Gigabit Ethernet

• IEEE 802.3z for Gigabit fiber

• IEEE 802.3af/at Power over Ethernet (DIS-200G-12PS/DIS-200G-12PSW)

• IEEE 802.3az-compliant

Media Interface Exchange

• Auto-MDI/MDIX adjustment for all twisted pair ports

Performance

Switching Capacity

• 24 Gbps

Maximum Forwarding Rate

• 17.85 Mpps

MAC Address Table Size

• Up to 8K entries

Transmission Method

• Store-and-forward

PoE (DIS-200G-12PS and DIS-200G-12PSW only)

PoE Standards

• IEEE 802.3af/at

PoE Capable Ports

• Ports 1 to 8

PoE Power Budget

• Max. 240 W1

Physical

Diagnostic LEDs

DIS-200G-12S and DIS-200G-12SW:

• SYS

• ALM

• PWR1/2/3

• Link/Activity/Speed

DIS-200G-12PS and DIS-200G-12PSW:

• SYS

• ALM

• PWR1/2/3

• Link/Activity/Speed

• PoE status

• PoE budget

Power Input

DIS-200G-12S and DIS-200G-12SW:

• 12 to 48 V DC terminal block dual input

• 12 V DC 4-pin DIN single power input

DIS-200G-12PS and DIS-200G-12PSW:

• 48 to 54 V DC terminal block dual input

• 54 V DC 4-pin DIN single power input

Power Consumption

DIS-200G-12S and DIS-200G-12SW:

• Maximum: 10.26 W

• Standby: 5.94 W

DIS-200G-12PS and DIS-200G-12PSW:

• Maximum: 260 W (PoE on)

• Maximum: 10.8 W (PoE off)

• Standby: 7.02 W

Alarm Relay

• 1 A at 24 V

Heat Dissipation

DIS-200G-12S and DIS-200G-12SW:

• 35.01 BTU/hr

DIS-200G-12PS and DIS-200G-12PSW:

• 887.16 BTU/hr (PoE on)

• 36.85 BTU/hr (PoE off)

Weight

DIS-200G-12S and DIS-200G-12SW:

• 1.63 kg (3.59 lbs)

DIS-200G-12PS and DIS-200G-12PSW:

• 1.76 kg (3.88 lbs)

Dimensions

• 210 x 171.2 x 48 mm (8.27 x 6.74 x 1.89 inches)

Ventilation

• Fanless

Operating Temperature

DIS-200G-12S:

• -40 to 65 °C (-40 to 149 °F)

DIS-200G-12SW:

• -40 to 75 °C (-40 to 167 °F)

DIS-200G-12PS:

• -40 to 65 °C (-40 to 149 °F)

DIS-200G-12PSW:

• -40 to 75 °C (-40 to 167 °F)

Storage Temperature

• -40 to 85 °C (-40 to 185 °F)

Operating Humidity

• 0% to 95% RH, non-condensing

Storage Humidity

• 0% to 95% RH, non-condensing

Material

• IP30-rated metal casing

Installation

• DIN rail/wall/rack mountable

MTBF

DIS-200G-12S:

• 276,773 hours

DIS-200G-12SW:

• 219,314 hours

DIS-200G-12PS:

• 213,112 hours

DIS-200G-12PSW:

• 156,452 hours

Certifications

• CE, FCC, BSMI

Safety

• UL60950-1

EMI

• CISPR 22, FCC Part 15B Class A

EMS

• EN 61000-4-2 ESD

• EN 61000-4-3 RS

• EN 61000-4-4 EFT

• EN 61000-4-5

• EN 61000-4-6 CS

• EN 61000-4-8

Environmental Tests

• IEC 60068-2-27 Shock

• IEC 60068-2-32 Freefall

• IEC 60068-2-6 Vibration

Software Features

VLAN

• IEEE 802.1Q tagged VLAN

• Port-based VLAN

• Auto-Surveillance VLAN 2.0 (ASV 2.0)

• Voice VLAN

• Asymmetric VLAN

• VLAN group

   • Supports 128 static VLAN groups

   • Max. 4094 VIDs

• GVRP

L2 Features

• Flow Control

   • IEEE 802.3x Flow Control

   • HDL Blocking Prevention

• Jumbo frames up to 9600 bytes

• IGMP Snooping

   • IGMP v1/v2/v3

   • Supports up to 256 IGMP snooping groups (shared with MLD snooping)

   • IGMP Snooping Querier

• MLD Snooping

   • MLD snooping v1/v2

   • Supports up to 256 MLD snooping groups (shared with IGMP snooping)

   • MLD Snooping Querier

• IEEE 802.3ad Link Aggregation

   • Supports 6 groups per device, 8 ports per group

• Ethernet Ring Protection Switching (ERPS)

   • G.8032 ERPSv1 single ring

• Loopback detection

• LLDP

• Port mirroring

   • One-to-One

   • Many-to-One

• Statistics

   • Tx Ok

   • Tx Error

   • Rx Ok

   • Rx Error

• Spanning Tree Protocol (STP)

   • IEEE 802.1D STP

   • IEEE 802.1w RSTP

   • IEEE 802.1s MSTP

Quality of Service (QoS)

• IEEE 802.1p Quality of Service (QoS)

   • 4 queues per port

   • Queue handling

   • Strict Priority Queue (SPQ)

   • Weighted Round Robin (WRR)

   • Port-based bandwidth control (rate limiting)

   • Ingress: 8 kbps

   • Egress: 64 kbps

Security

• D-Link Safeguard

• Traffic segmentation

• Broadcast/Multicast/Unknown Unicast Storm Control

• DoS attack prevention

• SSL

• Port security

AAA

• Web-based access control

• RADIUS

Management

• Web-based UI (supports IPv4/IPv6)

• Client-based D-Link Network Assistant (DNA)

• Industry-standard CLI

• SNTP

• SNMP v1/v2c/v3

• SNMP trap

• Telnet server

• System Log

• DHCP client

• TFTP client

• LLDP

• D-Link Discovery Protocol (DDP)

• Dual images

• Dual configurations

OAM

• Cable diagnostics

• Optical transceiver Digital Diagnostics Monitoring (DDM)

Green Technology

• Power saving by:

   • Link status detection

   • LED shut-off

   • Port shut-off

   • System hibernation

   • IEEE 802.3az Energy-Efficient Ethernet (EEE)

MIB/RFC Standards

• RFC768 UDP

• RFC791 IP

• RFC792 ICMP

• RFC793 TCP

• RFC826 ARP

• RFC1213 MIB II

• RFC1493 Bridage MIB

• RFC1907 SNMPv2 MIB

• RFC2668 802.3 MAU MIB

• RFC4133 Entity MIB

• RFC4363 IEEE 802.1p MIB

• ZoneDefense MIB

• Private MIB

Warranty

• Limited lifetime warranty²

Order Information

DIS-200G-12S   10 x 10/100/1000 Mbps ports + 2 x SFP ports switch

DIS-200G-12SW   10 x 10/100/1000 Mbps ports + 2 x SFP ports switch with -40 to 75 °C operating range

DIS-200G-12PS   8 x 10/100/1000 Mbps PoE ports + 2 x 10/100/1000 Mbps ports + 2 x SFP ports switch

DIS-200G-12PSW   8 x 10/100/1000 Mbps PoE ports + 2 x 10/100/1000 Mbps ports + 2 x SFP ports switch with -40 to 75 °C operating range

DIS-200G Series Accessories

DIS-RK200G   Standard 19” rack mounting kit

DIS-PWR40AC   40 W, 100 ~ 240 V AC input, 12 V DC output power adapter with 60 °C operating temperature

DIS-PWR180AC   180 W, 100 ~ 240 V AC input, 54 V DC output power adapter with 60 °C operating temperature

DIS-200G-RPK40   Rack mounting kit and 40 W, 100 ~ 240 V AC input, 12 V DC output power adapter with 60 °C operating temperature

DIS-200G-RPK180   Rack mounting kit and 180 W, 100 ~ 240 V AC input, 54 V DC output power adapter with 60 °C operating temperature

Optional SFP Transceivers

DEM-310GT   1000BASE-LX, single-mode, 10 km, 0 to 70 °C operating temperature

DIS-S310LX   1000BASE-LX, single-mode, 10 km, -40 to 85 °C operating temperature

DEM-311GT   1000BASE-SX, multi-mode, 550 m, 0 to 70 °C operating temperature

DIS-S301SX   1000BASE-SX, multi-mode, 550 m, -40 to 85 °C operating temperature

Optional Accessories

DPE-SP110 Outdoor PoE Ethernet Surge Protector

DPE-SP110I Ethernet Surge Protector
