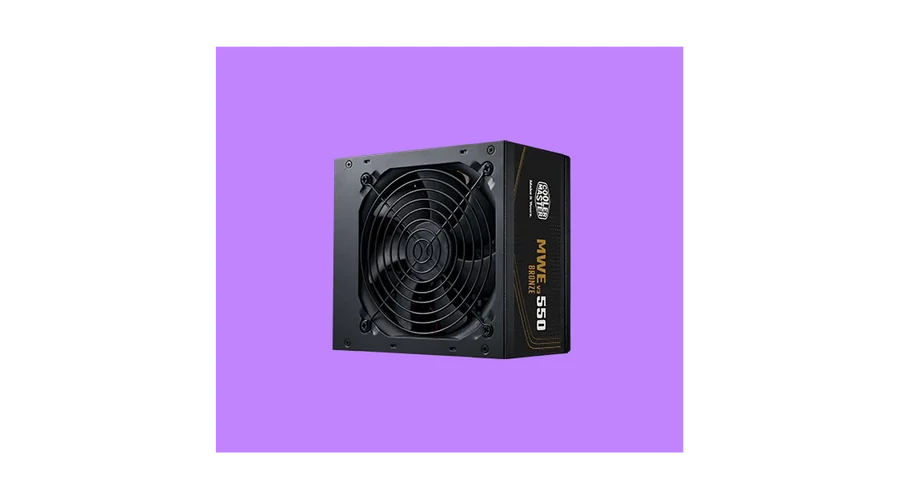

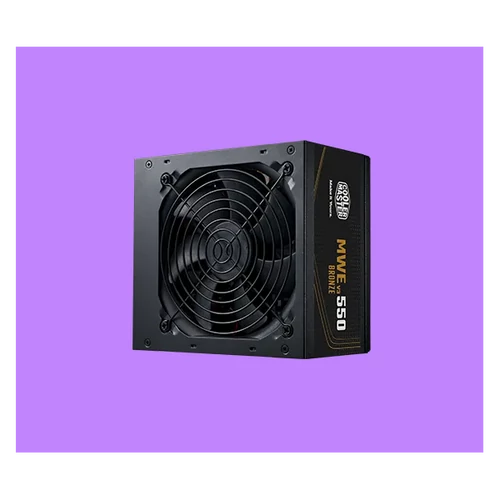

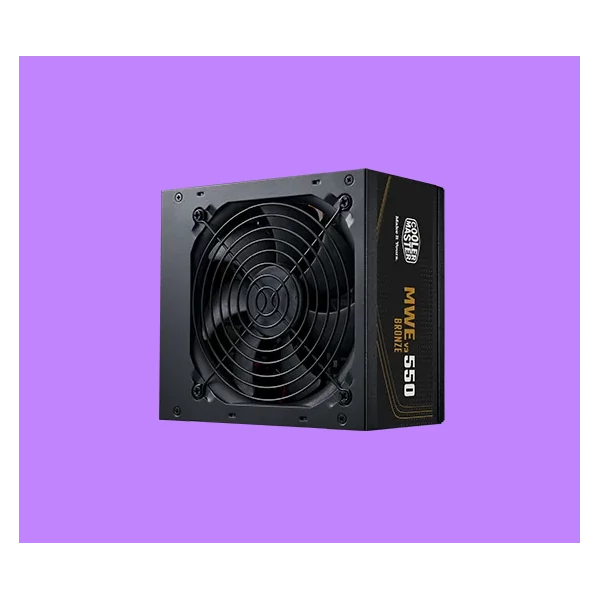

COOLER MASTER Tápegység MWE Bronze 550 V3 550W 80+ Bronze ATX 3.1 Cooler Master

ModelMPE-5501-ACAAW-3B

ATX VersionATX 12V Ver. 3.1

PFCActive PFC

Input Voltage100-240V

Input Current8-4A

Input Frequency50-60Hz

Dimensions (L x W x H)140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch

Fan Size120mm

Fan BearingHDB

Efficiency>85% @ Typical Load

80 PLUS Rating80 PLUS Bronze

ErP 2014 Lot 3Yes

Operating Temperature0-40°C

Power Good Signal100 - 150 ms

Hold Up Time>16ms

MTBF>100,000 Hours

ProtectionsUVP / OVP / OPP / OTP / SCP

RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

ATX 24 Pin Connectors1

EPS 4+4 Pin Connectors2

SATA Connectors6

Peripheral 4 Pin Connectors3

PCI-e 6+2 Pin Connectors2

Warranty5 Years

SeriesMWE Bronze Series

Category500 to 750W

ModularNon Modular

80 Plus EfficiencyBronze

Form FactorATX

Watts550W
