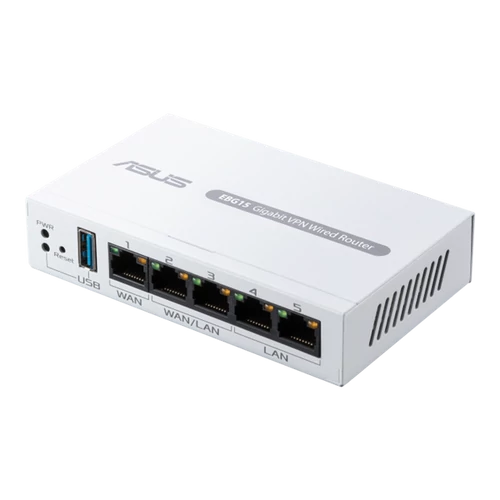

ASUS ExpertWiFi Vezetékes VPN Router 1xWAN(1000Mbps) + 2xWAN / LAN(1000Mbps) + 2xLAN(1000Mbps) + 1xUSB, EBG15 ASUS PER

Model

ASUS ExpertWiFi EBG15

Model Name

EBG15

Network Standard

Bluetooth® 3.0

Bluetooth® 3.2

IEEE 802.1p

IEEE 802.1q

IEEE 802.3

IEEE 802.3ab

IEEE 802.3i

IEEE 802.3u

IEEE 802.3x

IPv4

IPv6

Antenna

Internal Bluetooth antenna x 1

Processor

1.8GHz Dual-core ARMv8

Memory

256 MB Flash

512 MB RAM

Operating Mode

AiMesh Node Mode

I/O Ports

Gigabit WAN Port x 1

Gigabit LAN Port x 4 (Changable WAN/LAN Port x 2)

USB 3.2 Gen 1 x 1

Buttons

Reset Button

LED Indicator

Power x 1

USB x 1

Power Supply

AC Input : 110V~240V (50~60Hz)

DC Output : 12 V with max. 1.5 A current

Package Content

ExpertWiFi EBG15

RJ-45 cable

Power adapter

Warranty card

Quick start guide

Product Weight (g)

250g

Product Dimentions

121x75x26 mm

Remark

Content and color may vary in different regions and packages.

AiMesh

AiMesh

• Primary AiMesh Router

• AiMesh Node

Device Access Control

"Allow you to block access to unwanted websites and apps."

Web & Apps Filters

Time Scheduling

Safe Browsing

Customized Internet Schedule

• Maximum Device Access Control Profile :12

• Maximum Device Access Control Content Filter Rule :12

Dashboard

Dashboard

Self-Defined Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

• Employee

• Guest Portal

• Guest Network

• Scheduled Network

• IoT Network

• VPN Network

• Maximum Self-Defined Network Rule :16

VLAN

Bandwidth Limiter

AP isolate

DNS Server Connection

Security

AiProtection

VPN

Let's Encrypt

DNS-over-TLS

SSH

Firewall

• Maximum Firewall Keyword Filter :64

• Maximum Firewall Network Service Filter :32

• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPN

VPN Client L2PT

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support Surfshark

Traffic Control

Adaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

Traffic Analyzer

• Website History

WAN

Internet Connection Type

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

• IPSec

Dual WAN

Multi WAN Group

WAN Aggregation

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding

• Maximum Port Forwarding Rule : 64

Port Triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough

• PPTP Pass-Through

• L2TP Pass-Through

• IPSec Pass-Through

• RTSP Pass-Through

• H.323 Pass-Through

• PPPoE Relay

LAN

DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address

Wake on LAN (WOL)

VLAN

USB application

4G / 5G Auto Mobile Tethering

Safely Remove Disk

Media Server

Samba Server

FTP Server

Shared Folder Privileges

User Interface

WEB: ASUSWRT

APP: ASUS ExpertWiFi APP

Management

Multiple Site Management

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
