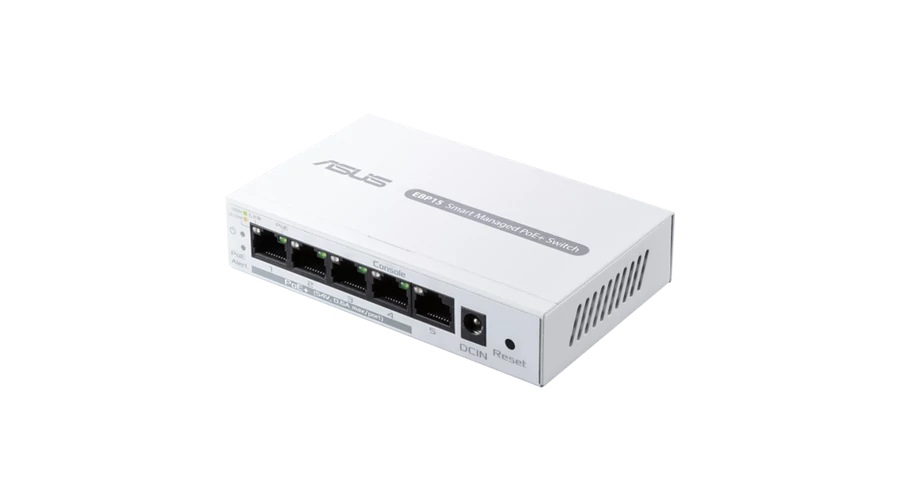

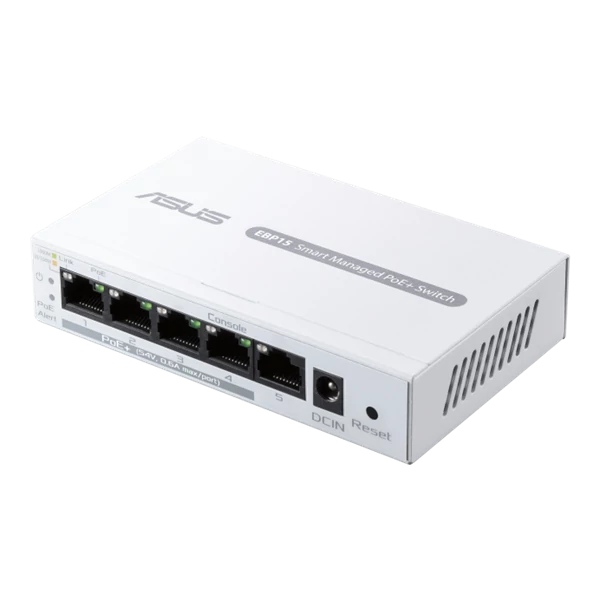

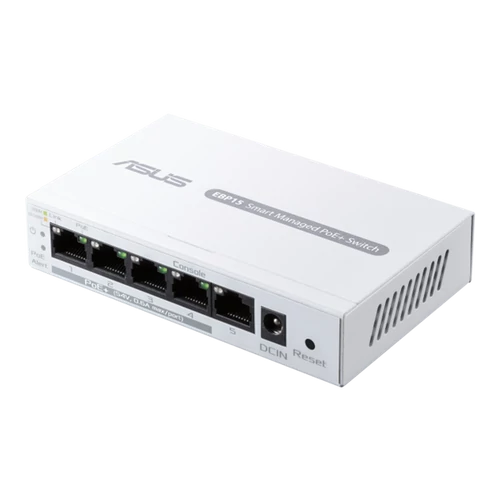

ASUS ExpertWiFi Switch 5x1000Mbps (4xPOE + ) Fémházas Asztali, EBP15 ASUS PCC

Model

ASUS ExpertWiFi EBP15

Port Attributes

Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Standard

IEEE 802.1p
IEEE 802.1q
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
IPv4

Color

White

PoE Budget

60 watts

Performance

MAC Address : Up to 8 K
Buffer Memory : 4 Mbits

LED Indicator

System power ON/OFF
PoE Alert
Link, Speed, activity, and PoE indicators per port built into each RJ-45 port

Power Supply

AC input: 100V~240V (50~60 Hz)
DC output: 54V with 1.25A

PoE Ports

Standard: 802.3 af/at compliant
PoE Ports: Port 1 - Port 4
Per Port Max: 30W

Management

Quality of Service
IGMP Snooping
Port Mirroring
Loop Detection/Prevention
Web-based GUI
ExpertWiFi APP (with ExpertWiFi products only)

Environmental

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -20?~70? (-4?~158?)
Operating Humidity: 10%~95%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing

Product Category

PoE+ Switch

Software Features

ExpertWiFi AiMesh Mode (with ExpertWiFi router only): centrally control the connected devices via ASUSWRT/ExpertWiFi app
Standalone Mode: IGMP Snooping, VLAN, Loop Detection/Prevention, Port Mirroring, Port-based QoS, 802.1p CoS, Firmware Update, PoE priority setting, PoE status

Security

SSL/TLS

Package Content

ExpertWiFi EBP15
RJ45 Ethernet Cable
Power Adapter
Quick Start Guide
Warranty Card

Product Weight (g)

248g

Product Dimensions

121 x 75 x 26mm
