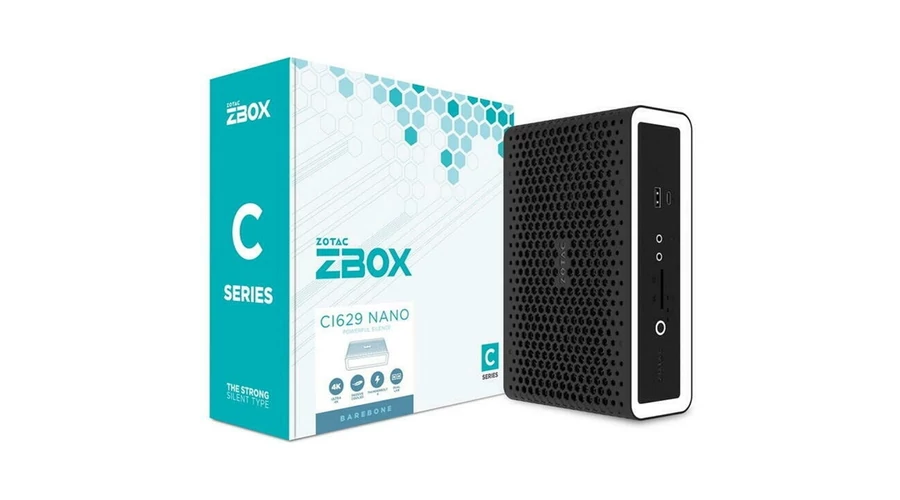

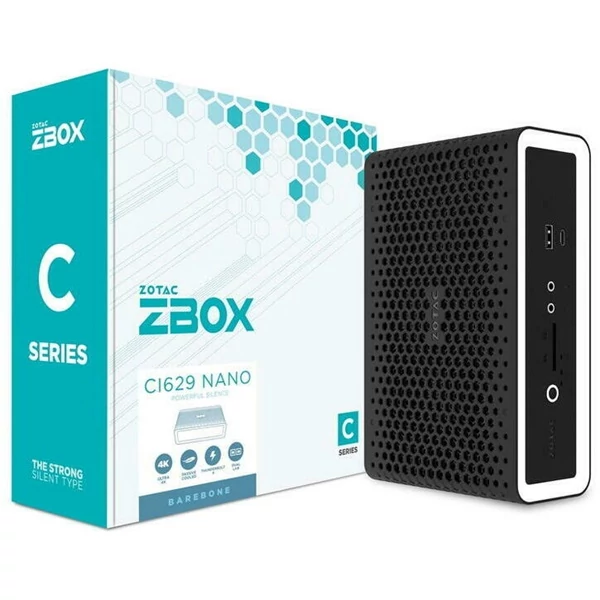

ZOTAC PC ZBOX, Intel Core i3 1315U 4.5GHz, HDMI, Displayport, TB 2xLAN, WIFI, BT, 2.5" HDD hely, 4xUSB, Passzív ZOTAC

•


  Processor





  Intel Core i3-1315U (6-core 1.2GHz, up to 4.5GHz)





•


  Chipset





  Intel





•


  System Memory





  2 x DDR5-5200/4800 SODIMM Slot (up to 64GB)




 Graphics

•


  Graphics Engine





  Intel UHD Graphics





•


  Video Output





  HDMI 2.0b (up to 3840x2160@60Hz)

  DisplayPort 1.4 (up to 4096X2160@60Hz)

  DisplayPort 1.4 via Thunderbolt (up to 4096X2160@60Hz)




 Storage

•


  Hard Drive





  2.5-inch SATA 6.0 Gbps SSD/HDD slot





•


  Storage





  N/A





•


  Optical Drive





  N/A





•


  mSATA





  N/A





•


  M.2





  M.2 NVMe PCIe 4.0 x4 SSD slot (2230/2242)





•


  Card Reader





  3-in-1 (SD/SDHC/SDXC)




 I/O Ports

•


  Audio





  Digital 8 Channel Audio via HDMI

  Stereo analog audio

  Microphone





•


  USB Port





  1 x USB 3.1 (Front)

  3 x USB 3.1 (Rear)

  1 x USB 2.0 (Rear)





•


  LAN





  Dual LAN (2.5Gbps / Gigabit)





•


  Antenna





  External





•


  Wifi





  Wi-Fi 6





•


  Bluetooth





  Bluetooth 5.2





•


  Legacy I/O





  N/A





•


  CIR Infrared Port





  N/A





•


  Thunderbolt





  1 x Thunderbolt 4





•


  IDE





  N/A




 Mechanical

•


  Kensington Lock





  Yes





•


  LED Indicators





  Power, HDD, WiFi





•


  Power Supply





  USB-C PD Power Supply

  DC 20V/65W





•


  Cooling system





  Passive cooling





•


  ZBOX Dimensions





  204mm x 129mm x 68mm (8.03in x 5.08in x 2.68in)





•


  Case Mounting





  VESA Mount




 Miscellaneous

•


  Supported OS





  Windows 11 ready





•


  Accessories





  WiFi antenna

  AC adapter

  Power cord (bundled cable type dependent on region)

  Warranty card

  Quick Install Guide

  VESA Mount (with 4 screws)

  USB Flash Drive with OS drivers
