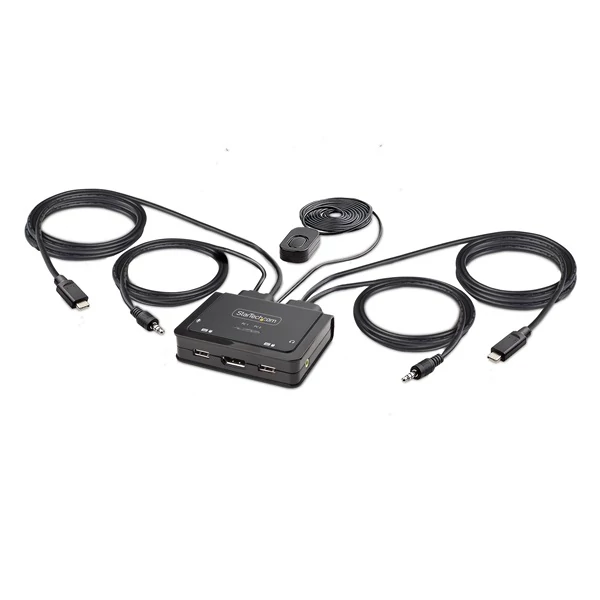

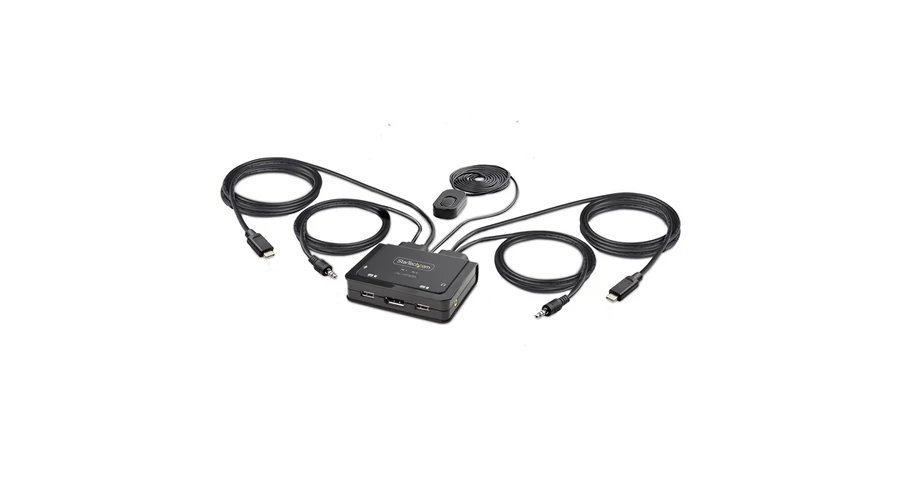

STARTECH KVM Switch 2xUSB-C, 4K 60Hz Displayport Output STARTECH

Connector(s)

Console Interface(s)

1 - DisplayPort

2 - USB 2.0 Type-A (4 pin, 480Mbps)

2 - 3.5mm Stereo Female 3 pos

Host Connectors

1 - USB-C (DP Alt-Mode)

2 - 3.5mm Stereo Male 4 pos

1 - DisplayPort

1 - USB 2.0 Type-A (4 pin, 480Mbps)

Environmental

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

0% ~ 90% RH (non-condensing)

Hardware

Audio

Yes

KVM Ports

2

PC Interface

USB & USB-C

PC Video Type

DisplayPort

Number of Monitors Supported

1

Rack-Mountable

No

Cables Included

Yes

Chipset ID

SN8P2202SG

Daisy-Chain

No

Indicators

LED Indicators

1 - Solid Green: Selected PC is connected

1 - Blinking Green: Selected PC is not detected

Packaging Information

Package Quantity

1

Package Length

21,0 cm [8,3 in]

Package Width

16,0 cm [6,3 in]

Package Height

6,0 cm [2,4 in]

Shipping (Package) Weight

450,0 g [15,9 oz]

Performance

On-Screen Display

No

Video Revision

DisplayPort 1.2

IP Control

No

Hot-Key Selection

Yes

Maximum Data Transfer Rate

480Mbps (USB 2.0)

Supported Resolutions

4096x2160 @60Hz

3840x2160 @60Hz

5120x1440 @60Hz

3440x1440 @60Hz

2560x1440 @60Hz

2560x1080 @60Hz

1920x1200 @60Hz

1920x1080 @60Hz



Other resolutions may be supported

Wide Screen Supported

Yes

Audio Specifications

DisplayPort - 2 Channel Audio

Analog Stereo - 2 Channel Audio

Auto Scan

10, 20, 30, 40, 50, and 60 seconds

Port Selection Support

Push Button, Hotkeys, and Software

General Specifications

PC1 Cable Length (USB-C/Audio): 1.2m/4ft

PC2 Cable Length (USB-A/DisplayPort/Audio): 1.8m/6ft

MTBF

261,196 Hours

Physical Characteristics

Color

Black

Product Length

9,5 cm [3,7 in]

Product Width

8,0 cm [3,1 in]

Product Height

2,4 cm [0,9 in]

Weight of Product

380,0 g [13,4 oz]

Material

ABS

Power

Power Source

Bus Powered

Input Voltage

5V DC

Software

OS Compatibility

Windows 7, 8/8.1, 10, 11

macOS 10.12 - 10.15, 11, 12

ChromeOS

Special Notes / Requirements

Note

OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform

What's in the Box

Included in Package

1 - KVM Switch

1 - 3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter

1 - Quick-Start Guide
