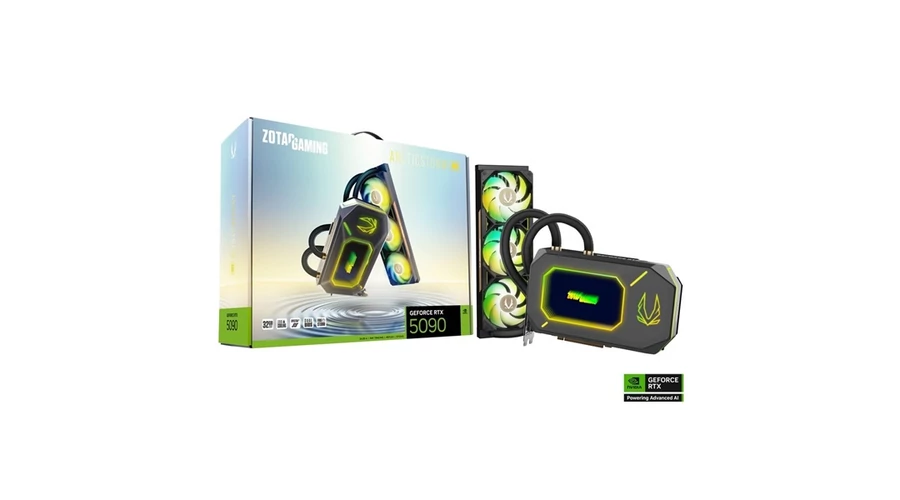

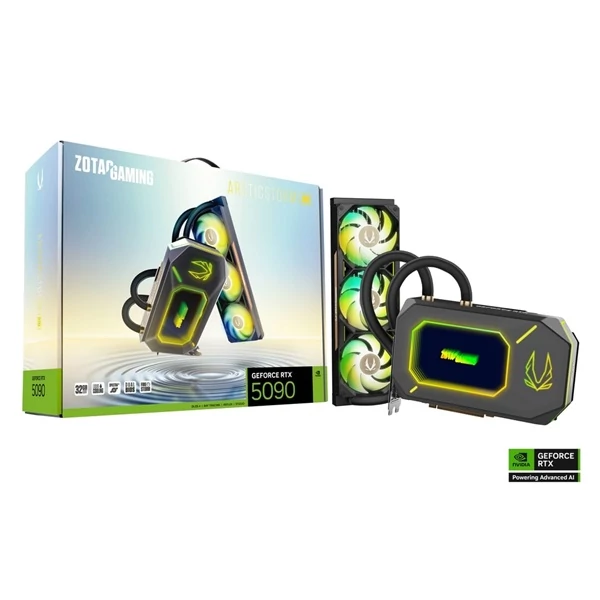

ZOTAC Videokártya PCI-Ex16x nVIDIA RTX 5090 ARCTICSTORM AIO 32GB GDDR7 ZOTAC

 Specifications

•


  GPU





  NVIDIA GeForce RTX 5090 GPU





•


  CUDA cores





  21760





•


  Video Memory





  32GB GDDR7





•


  Memory Bus





  512-bit





•


  Engine Clock





  2437 MHz





•


  Memory Clock





  28 Gbps





•


  PCI Express





  PCI Express 5.0 x16





•


  Display Outputs





  3 x DisplayPort 2.1b with UHBR20

  (up to 4K 480Hz or 8K 165Hz with DSC)

  1 x HDMI® Connector

  (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)





•


  HDCP Support





  2.3





•


  Multi Display Capability





  Quad Display





•


  Recommended Power Supply





  1000W





•


  Power Consumption





  575W *High power consumption, please carefully read your PSU manual before installation.





•


  Power Input





  1 x 12v-2x6 power input





•


  DirectX





  Microsoft DirectX® 12 Ultimate





•


  OpenGL





  4.6





•


  Cooling





  360mm Radiator Liquid Cooling





•


  Slot Size





  2.5





•


  SLI





  No





•


  Supported OS





  Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)





•


  Card Length





  251.6mm x 160.1mm x 49mm / 9.9" x 6.3" x 1.9" (Card); 394mm x 55.7mm x 122.8mm/15.5" x 2.2" x 4.8" (Radiator + Fans); 520mm (Tube Length)





•


  Accessories





  User Manual

  4 x 8-pin-to-16-pin cable

  ARGB GPU Support Bracket
