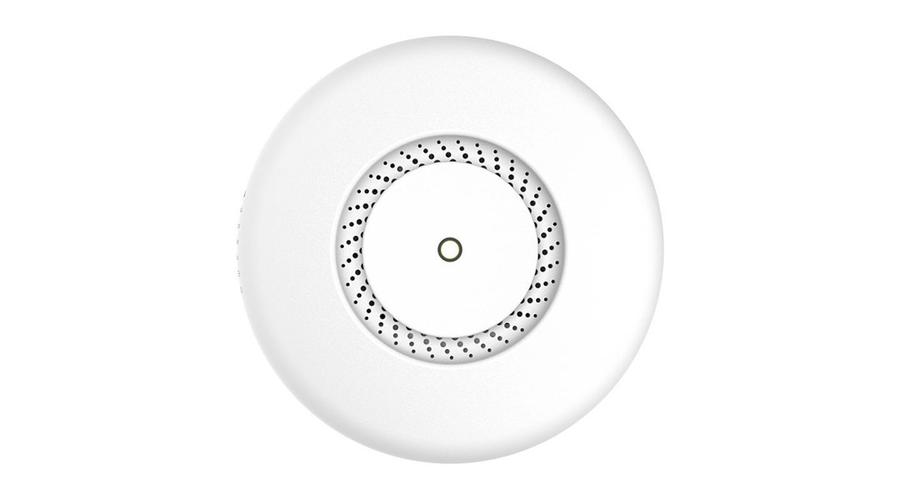

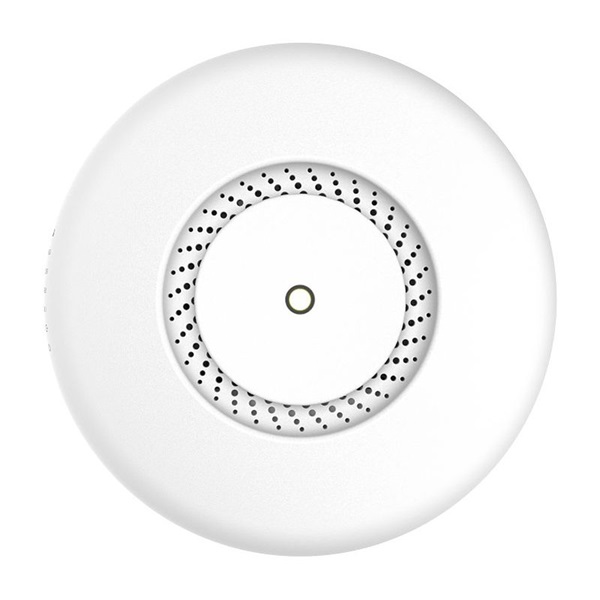

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/?? standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications
| Details |
| Product code
|
RBcAPGi-5acD2nD
|
| Architecture
|
ARM 32bit
|
| CPU
|
IPQ-4018
|
| CPU core count
|
4
|
| CPU nominal frequency
|
716 MHz
|
| Dimensions
|
Round case: ? 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
|
| License level
|
4
|
| Operating System
|
RouterOS
|
| Size of RAM
|
128 MB
|
| Storage size
|
16 MB
|
| Storage type
|
FLASH
|
| Tested ambient temperature
|
-40°C to 50°C
|
|
|
|
Powering
| Details |
| PoE in
|
802.3af/at
|
| PoE in input Voltage
|
17-57 V
|
| PoE out
|
Passive PoE up to 57V
|
| PoE-out ports
|
Ether2
|
| Number of DC inputs
|
1 (PoE-IN)
|
| Max out per port output (input > 30 V)
|
400 mA
|
| Max out per port output (input < 30 V)
|
500 mA
|
| Max total out (A)
|
500 mA
|
| Max power consumption
|
24 W
|
| Max power consumption without attachments
|
13 W
|
Wireless
| Details |
| AC speed
|
AC1200
|
| Wireless 2.4 GHz Max data rate
|
300 Mbit/s
|
| Wireless 2.4 GHz number of chains
|
2
|
| Wireless 2.4 GHz standards
|
802.11b/g/n
|
| Antenna gain dBi for 2.4 GHz
|
2
|
| Wireless 2.4 GHz chip model
|
IPQ-4018
|
| Wireless 2.4 GHz generation
|
Wi-Fi 4
|
| Wireless 5 GHz Max data rate
|
867 Mbit/s
|
| Wireless 5 GHz number of chains
|
2
|
| Wireless 5 GHz standards
|
802.11a/n/ac
|
| Antenna gain dBi for 5 GHz
|
2.5
|
| Wireless 5 GHz chip model
|
IPQ-4018
|
| Wireless 5 GHz generation
|
Wi-Fi 5
|
Ethernet
| Details |
| 10/100/1000 Ethernet ports
|
2
|
Other
Certification & Approvals
| Details |
| Certification
|
CE/RED, FCC, IC, EAC, ROHS
|
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s
|
26
|
-100
|
| 11MBit/s
|
26
|
-94
|
| 6MBit/s
|
26
|
-96
|
| 54MBit/s
|
23
|
-78
|
| MCS0
|
26
|
-96
|
| MCS7
|
22
|
-73
|
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s
|
26
|
-96
|
| 54MBit/s
|
21
|
-80
|
| MCS0
|
26
|
-96
|
| MCS7
|
20
|
-75
|
| MCS9
|
18
|
-70
|
