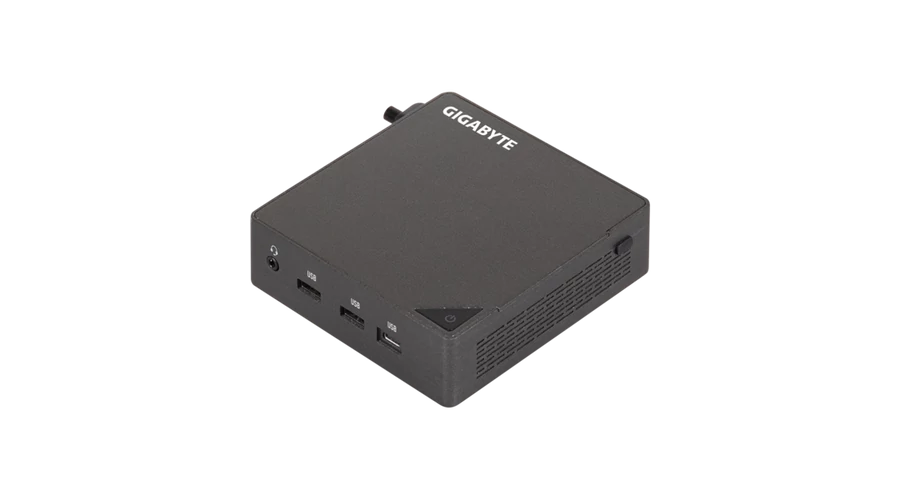

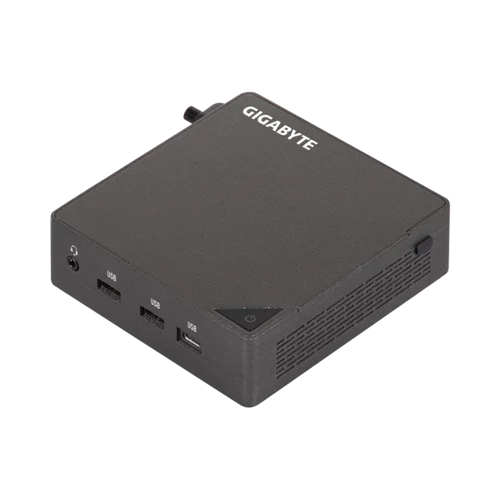

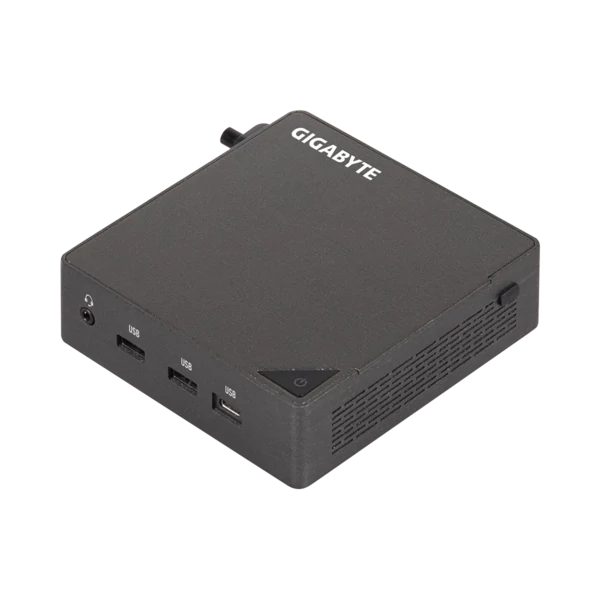

GIGABYTE PC BRIX, Intel Core Ultra U5 225H 4.9GHz, 2xHDMI, Displayport (Type C), LAN, WIFI, BT, 7xUSB Gigabyte

Dimension

112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)

Motherboard Size

105 mm x 114.49 mm

CPU

Intel^® Core™ Ultra 5 processor 225H

14C, 4P+8E+2LPE, 28W

Memory

2 x SO-DIMM DDR5 slots, support up to 6400MHz

Max. 96GB

LAN

2.5GbE LAN (Intel^® I226V)

Graphics

Intel^® Arc™ Graphics, Intel^® Xe LPG+, up 8 Xe cores

2 x HDMI v2.1, 4096x2160 60Hz, TMDS, CEC

2 x USB type C ALT (DisplayPort v2.1)

Audio

HD Audio (Realtek Audio)

Expansion Slots

1 x M.2 M Key 2280 SSD slot (PCIe Gen5x4)

1 x M.2 M Key 2280 SSD slot (PCIe Gen4x4+SATA)

1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

Front I/O

1 x Headset

2 x USB 3.2 Gen2

1 x USB-C 3.2 Gen2

1 x Power button with LED

Rear I/O

2 x HDMI 2.1 (TMDS & CEC)

1 x USB-C 3.2 (ALT)

1 x USB-C 3.2 (PD IN)

1 x USB 3.2 Gen2

1 x USB 2.0

1 x RJ45

1 x Kensington Lock Slot

Power Supply

100-240V, 100W USB PD adapter (USB type C)

VESA

VESA support

Supports 75 x 75 and 100 x 100 mm

Support OS

Windows 11 64bit

Environment

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C

NPU

Dedicated Low Power AI Engine 13 TOPs
