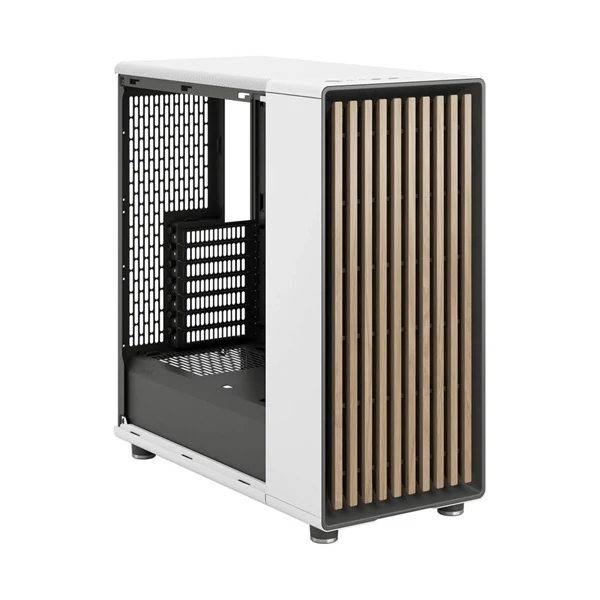

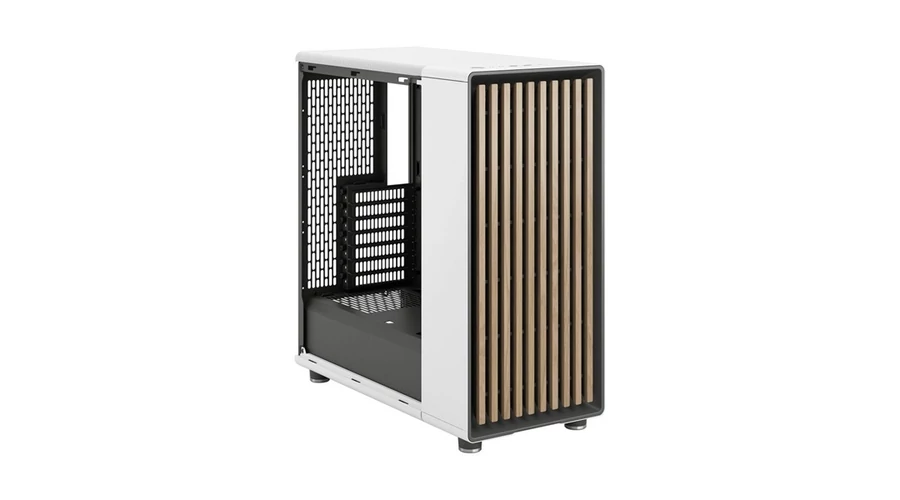

FRACTAL DESIGN Ház Midi ATX North Tápegység nélkül, Fehér Üvegfalú FRACTAL DESIGN

•


  Dedicated 2.5" drive mounts





  2





•


  Combined 3.5/2.5” drive mounts





  2 (included)





•


  5.25” drive mounts





  0





•


  Expansion slots





  7





•


  Front interface





  1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic





•


  Total fan mounts





  8 x 120 mm or 6 x 140 mm





•


  Front fan





  3 x 120, 2 x 140 mm (2 x Aspect 140 mm PWM Included)





•


  Top Fan





  2 x 120/140 mm





•


  Rear fan





  1 x 120 mm





•


  Dust filters





  Front, PSU





•


  Fixed cable straps





  Yes





•


  Cable routing grommets





  Yes





•


  Captive thumbscrews





  HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket





•


  Left side panel





  Mesh or tempered glass





•


  Right side panel





  Steel




Compatibility

•


  Motherboard compatibility





  ATX / mATX / Mini-ITX





•


  Power supply type





  ATX





•


  PSU max length





  1 HDD Tray: 255 mm max, 2 HDD Tray: 155 mm max





•


  GPU max length





  355 mm with and without front fan mounted





•


  CPU cooler max height





  145 mm with Fan Bracket (Mesh version only)/ 170 mm w.o





•


  Front radiator





  Up to 360 mm





•


  Top radiator





  Up to 240 mm (See manual for details on ram clearance)





•


  Rear radiator





  1 x 120 mm (If using a rear radiator the mesh version fan bracket can only be slotted into the bottom position)





•


  Cable routing space





  30 mm




Dimensions

•


  Case dimensions (LxWxH)





  447 x 215 x 469 mm





•


  Case dimensions w/o feet/protrusions/screws





  433,5 x 215 x 450 mm





•


  Net weight





  7.6 kg (Mesh) / 7.7kg (TG)





•


  Package dimensions (LxWxH)





  565 x 326 x 553 mm





•


  Gross weight





  9.55 kg (Mesh) / 9.3kg (TG)
