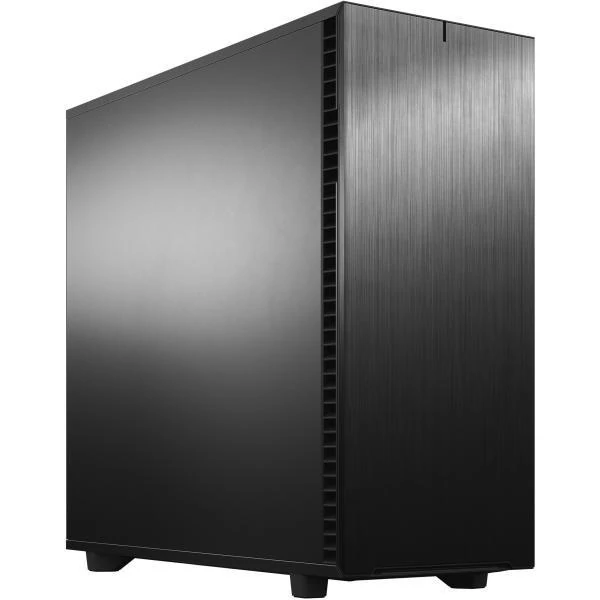

FRACTAL DESIGN Ház Midi ATX Define 7 XL Tápegység nélkül, Fekete Üvegfalú FRACTAL DESIGN

•


  3.5"/2.5" Universal drive brackets





  6 + 2 included, 18 positions total





•


  Dedicated 2.5" drive brackets





  2 included, 5 positions total





•


  5.25” drive mounts





  2





•


  Expansion slots





  9 + 3





•


  Front ports





  1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button





•


  Total fan mounts





  11 x 120 mm or 9 x 140 mm





•


  Front fan





  4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)





•


  Top fan





  4 x 120 mm or 3 x 140 mm





•


  Rear fan





  1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)





•


  Bottom fan





  2 x 120/140 mm





•


  Dust filters





  Top, 2 x Front, Bottom + PSU





•


  Fixed velcro straps





  Yes





•


  Cable routing grommets





  Yes





•


  Captive thumbscrews





  HDD brackets, SSD brackets, PSU bracket





•


  Left side panel





  Industrial sound-damped steel or Tempered Glass





•


  Right side panel





  Industrial sound-damped steel




Compatibility

•


  Motherboard compatibility





  E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB





•


  Power supply type





  ATX





•


  PSU max length





  250 mm (both HDD cages installed)





•


  GPU max length





  Storage layout: 340 mm - Open layout: 530 mm (505 mm w/ front fan)





•


  CPU cooler max height





  185 mm





•


  Front radiator





  Up to 480/420 mm





•


  Top radiator





  Up to 480/420 mm





•


  Rear radiator





  120 mm





•


  Bottom radiator





  Up to 240/280 mm





•


  Cable routing space





  30 mm





•


  Vertical GPU Support (with Flex B-20 or Flex VRC-25)





  65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling




Dimensions

•


  Case dimensions (LxWxH)





  604 x 240 x 566 mm





•


  Case dimensions w/o feet/protrusions/screws





  590 x 240 x 548 mm





•


  Package dimensions (LxWxH)





  646 x 357 x 708 mm





•


  Net weight





  Solid Version: 16.53 kg, TG Version: 16.64 kg





•


  Package weight





  Solid Version: 18.73 kg, TG Version: 18.84 kg





•


  Volume





  77.6 liters
