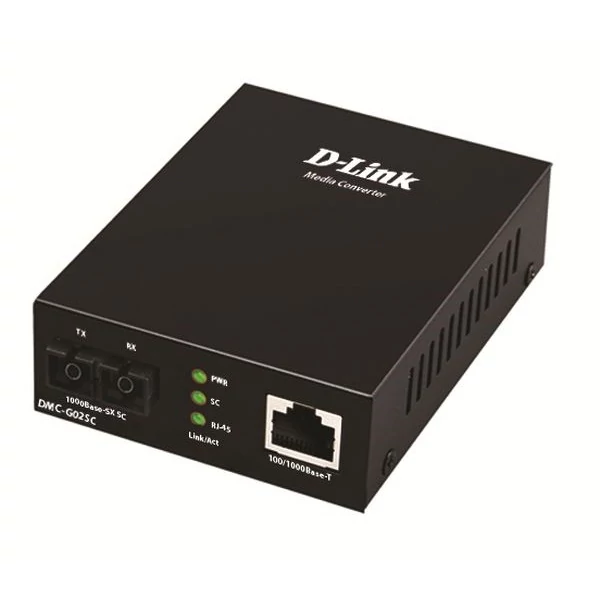

D-LINK Optikai Media Konverter 100 / 1000Base-T to 1000Base-SX SC Multi mód 550m, DMC-G02SC / E D-Link

Hardware

Interfaces

• One 10/100/1000Base-T port

• One 1000Base-SX SC port

LEDs

• PWR

• Link/Act (SC)

• Link/Act (RJ-45)

Functionality

Standards and Functions

• IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3ab 1000Base-T

• IEEE 802.3z 1000Base-SX

• IEEE 802.3x Flow Control in full-duplex mode

• Auto MDI/MDIX adjustment for copper port

• Link Fault Pass-through support for link status control

Maximum Packet Size

• 16 KB

Physical Parameters

Dimensions (L x W x H)

• 70.5 x 93.5 x 26 mm

Weight

• 124 g

Environmental Conditions

Power Supply

• 5 V DC, 0.55 A power adapter

Max. Power Consumption

• 1.65 W

Wavelength

• 850 nm

Length of Supported Fiber Optic Cable

• Up to 550 m

Temperature

• Operating: 0 to 55 °C

• Storage: -25 to 70 °C

Humidity

• 20% to 80% non-condensing
