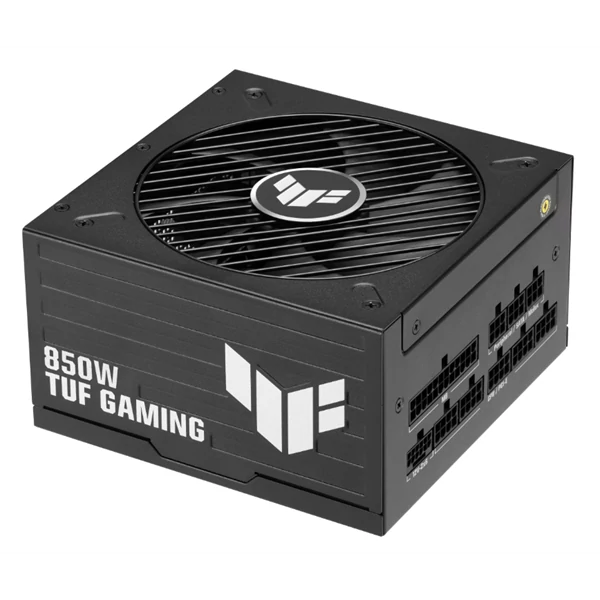

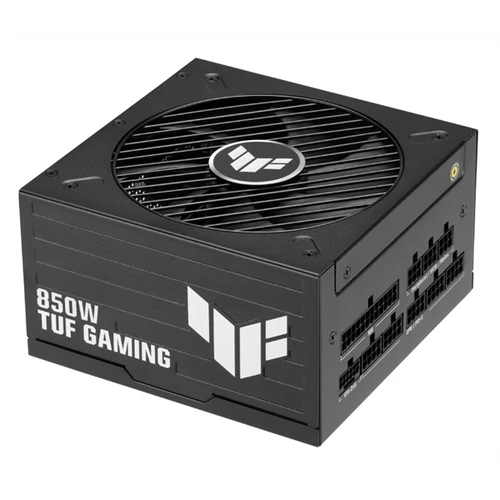

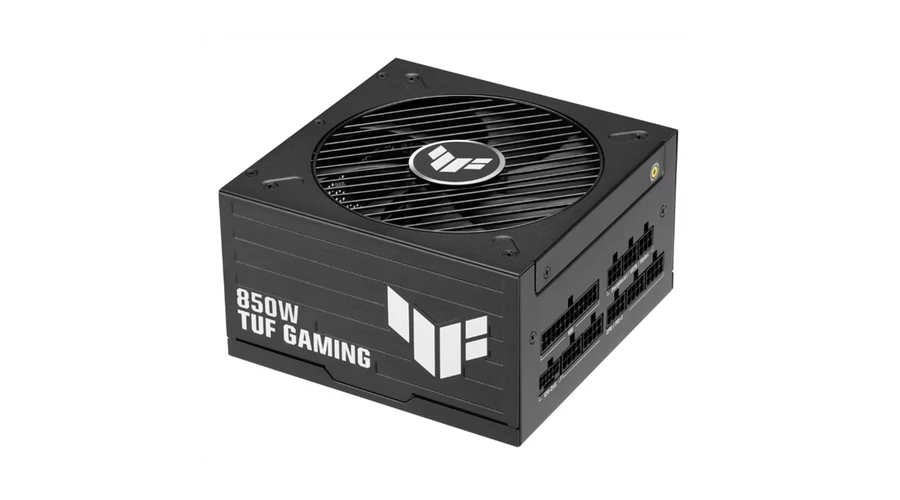

ASUS Tápegység TUF Gaming 850W 80+ Platinum moduláris Gen 5.1 ASUS PER

Model

TUF-GAMING-850P

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 40°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 70.83A 0.3A 3A

Combined Load

125W 125W 850W 3.6W 15W

Total Output

850W

Cable Connectors

MB 20+4pin x 1

CPU 4+4pin x 2

PCI-E 16pin x 1 (12V-2x6)

PCI-E 6+2pin x 3

SATA x 4

PERIPHERAL x 2

Package Contents

Power Cord x 1

Motherboard Power cable x 1 (610mm)

CPU 1-to-2 Cable x 1 (650mm+100mm)

PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (500mm)

PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 1 (500mm)

PCI-E 1-to-2 Cable (16-pin-to-6+2pin*2) x 1 (500+100mm)

SATA & Peripheral 1-to-2+1 Cable x 2 (400+120+120mm)

TUF Gaming Cable Tie x 3

User Manual x 1

Weight

1.48 kg (single PSU)

0dB Technology

No
