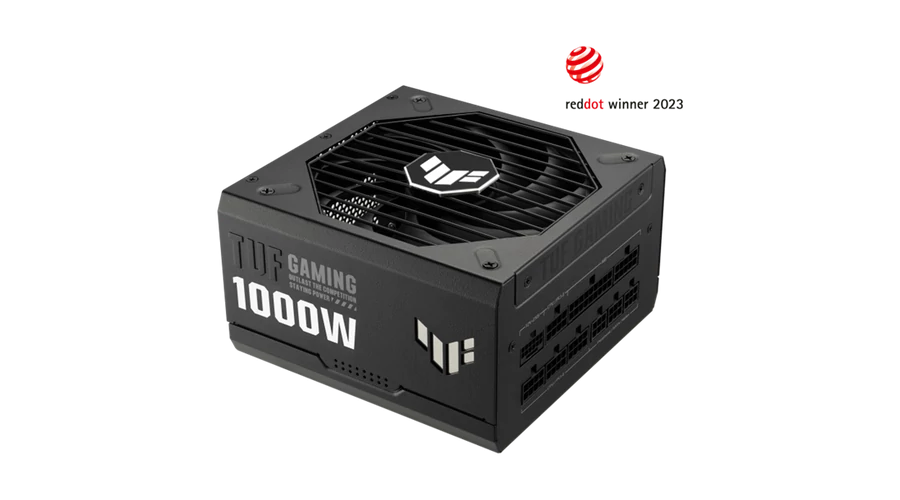

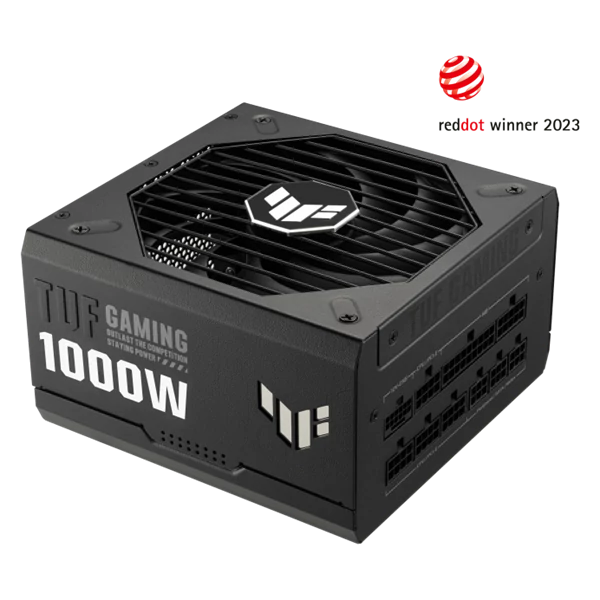

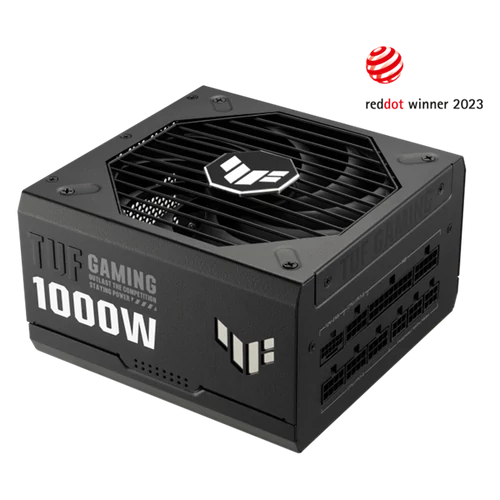

ASUS Tápegység TUF Gaming 1000W 80+ Gold moduláris Gen 5.1 ASUS PER

Model

TUF Gaming 1000W Gold

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

MTBF

>120,000 hrs @ 40°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A25A83.3A 0.8A 3A

Combined Load

130W 130W 1000W 9.6W 15W

Total Output

1000W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (both PSU & component side)

PCI-E 8-pin x 4

SATA x 5

PERIPHERAL x 4

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (610mm)

CPU Cable x 2 (650mm)

PCI-E Gen 5.1 16-pin Cable x 1 (675mm)

PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)

PCI-E 1-to-1 Cable x 2 (675mm)

SATA 1-to-2 Cable x 1 (400+120mm)

SATA 1-to-3 Cable x 1 (400+120+120mm)

Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)

TUF Gaming Cable Tie x 3

User Manual x 1

Weight

2.48kg (single PSU)

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
