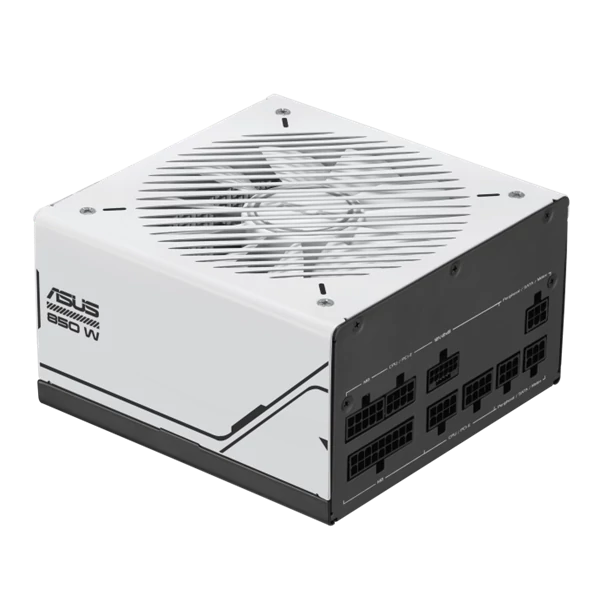

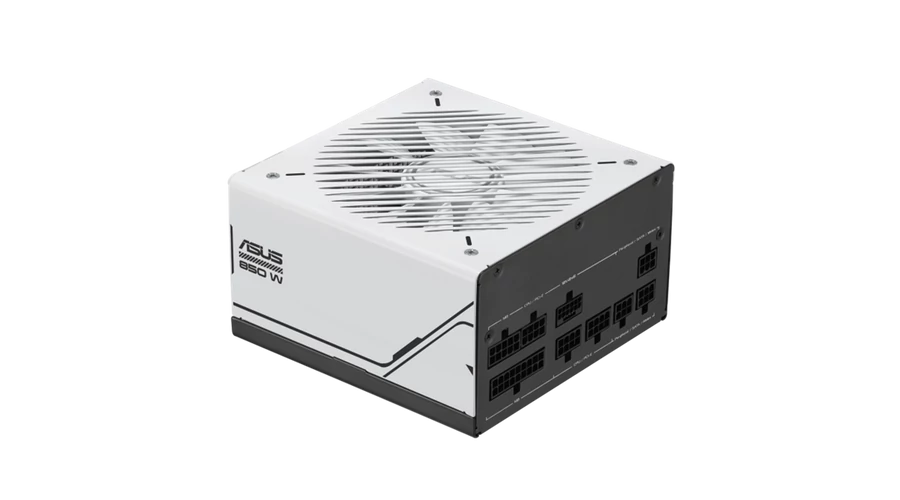

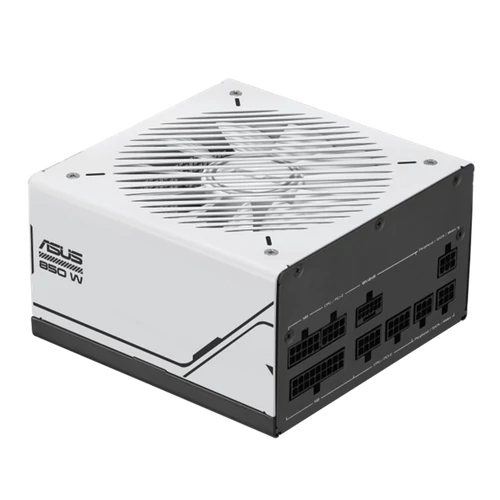

ASUS Tápegység Prime 850W 80+ Gold moduláris Gen 5.0 ASUS PER

Model

AP-850G

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A20A70.5A 0.3A 2.5A

Combined Load

110W 110W 846W 3.6W 12.5W

Total Output

850W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (both PSU & connector side)

PCI-E 8-pin x 3

SATA x 5

PERIPHERAL x 3

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (610mm)

CPU Cable x 2 (650mm)

PCI-E Gen 5.1 16-pin Cable x 1 (675mm)

PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)

PCI-E 1-to-1 Cable x 1 (675mm)

SATA 1-to-2 Cable x 1 (400+120mm)

SATA 1-to-3 Cable x 1 (400+120+120mm)

Peripheral 1-to-3 Cable x 1 (400+150+150mm)

User Manual x 1

Weight

1.502 kg (single PSU)

0dB Technology

No

0dB Fan Button

No, this product is without 0dB technology.
