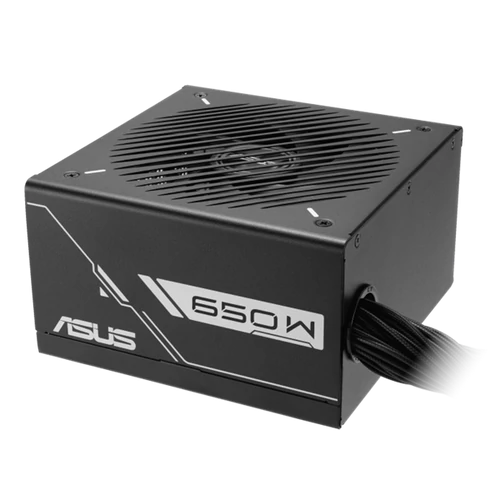

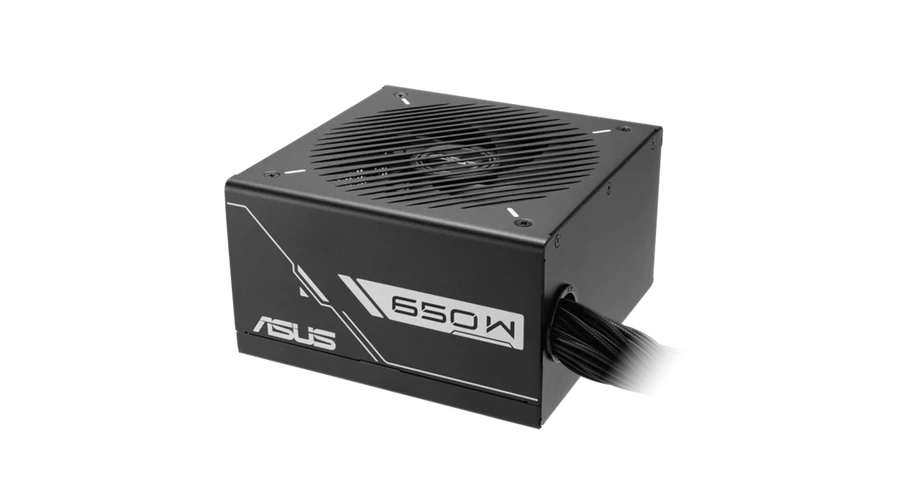

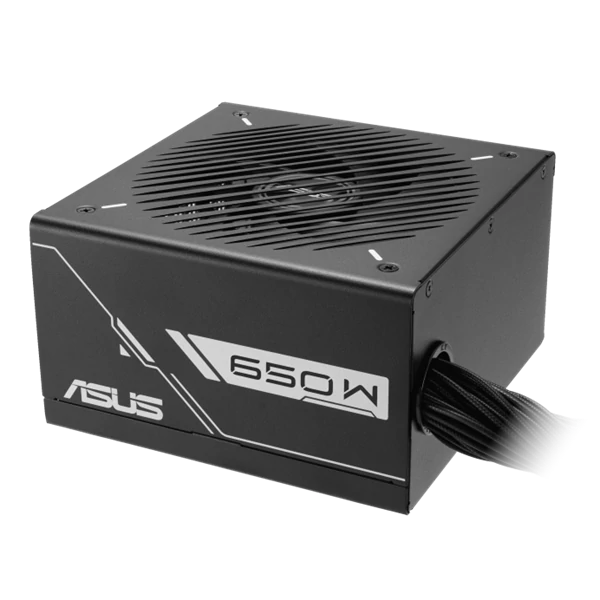

ASUS Tápegység Prime 650W 80+ Bronze ASUS PER

Model

PRIME-650B-BLACK

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

NA

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Bronze

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 54A 0.3A 2.5A

Combined Load

110W 110W 648W 3.6W 12.5W

Total Output

650W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 1

PCI-E 8-pin x 2

SATA x 5

PERIPHERAL x 3

Package Contents

Power Cord x 1

CPU cable x 1 (800mm)

PCI-E 1-to-2 x 1 (600mm)

SATA 1-to-2 cable x 1 (400+120mm)

SATA 1-to-3 cable x 1 (400+120+120mm)

Peripheral 1-to-3 cable x 1 (400+120+120mm)

User Manual x 1

Weight

Single PSU : 2.2KG

Product Weight (with packing) : 3.067KG

Cybenetics Noise Level Certification

NA

0dB Technology

No
