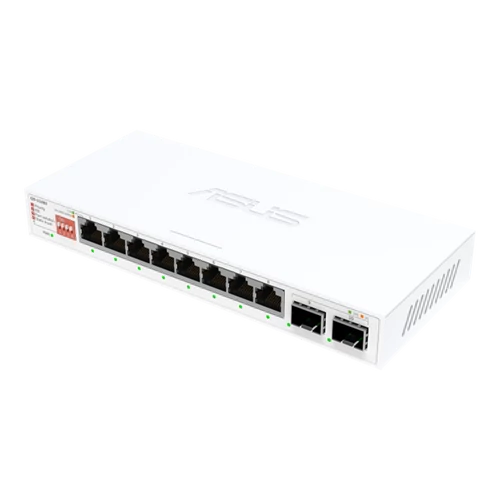

ASUS Switch 8x2.5Gbps + 2x10G SFP + , QG-U1080 ASUS PER

Model

QG-U1080

Port Attributes

8 x 2.5G RJ45 ports
2 x 10G SFP+ ports

Standard

IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3bz 2.5G BASE-T
IEEE 802.3-2012, IEEE 10GBASE-KR (10.3125 Gbps)
IEEE802.3az EEE
IEEE802.3x Flow control

Color

White

Performance

MAC address Table: 16K
Packet buffer: 8Mbits
Jumbo Frame: 10K bytes
Forwarding Rate: 59.52Mpps (64-byte)

LED Indicator

Power LED
Off: The switch is powered off or fails.
Green On: The switch is powered on.
Blinking: Loop detected.

Port 1-8 LED
Off: Devices are disconnected or the link has failed.
Green On: 2.5Gbps connection
Amber On: 10/100/1000Mbps connection
Blinking: Devices are connected and data is transmitting or receiving.
Blinking rapidly: Loop detected.

SFP+ Port 9-10 LED
Off: Devices are disconnected or the link has failed.
Green On: 10Gbps connection
Amber On: 1Gbps connection
Blinking: Devices are connected and data is transmitting or receiving.
Blinking rapidly: Loop detected.

Power Supply

External Power Adapter
Output: 12V/1A

Environmental

Operating Temperature: 0 ~ 40?
Storage Temperature: -40 ~ 70?
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)

Package Content

ASUS QG-U1080 Switch
Power Adapter
Quick Start Guide
Warranty Card

Product Weight (g)

420 g

Product Dimensions

193 x 84.1 x 26 mm
